Battery Powered Vacuum Glass Lifting Device For Flat Arc Or Curved Surface Glass
Price:
USD 2000~USD 10000
MOQ:
1 set
Delivery Time:
15-25 work days
Brand:
HESHAN
Product Description

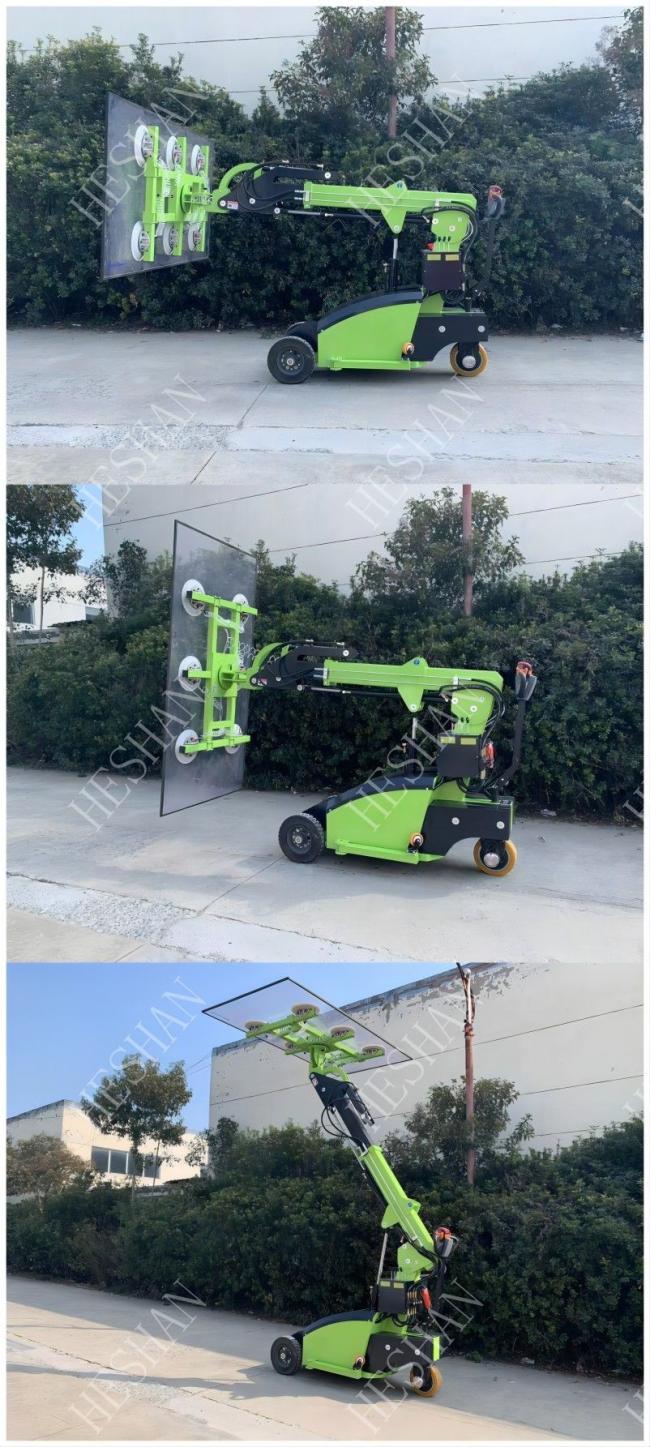

Battery Power Flat Arc Glass Or Curved Surface Glass Vacuum Lifter Glass Handler
A Vacuum Lifter is a type of material handling equipment that uses suction to lift and move heavy loads. It is commonly used in a variety of industries, including manufacturing, construction, and transportation. This device is designed to handle a wide range of items, including sheets of glass, metal plates, and large stone slabs, making it a versatile solution for many heavy-duty lifting tasks.
One of the key features of a Vacuum Lifter is its ease of use. The operator simply attaches the suction cups to the load and activates the vacuum, which securely holds the load in place. This eliminates the need for manual handling, reducing the risk of injury and increasing efficiency. Additionally, Vacuum Lifters can be fitted with a variety of suction cup sizes and shapes to accommodate different types of loads, further increasing their versatility.
Another advantage of using a Vacuum Lifter is increased safety. Unlike manual handling or the use of cranes, the vacuum eliminates the risk of dropping the load, as the suction cups will only release the load when the vacuum is intentionally turned off. This makes it an ideal solution for handling fragile and delicate items, such as glass sheets or stone slabs.
In conclusion, if you're looking for a safe and efficient way to handle heavy loads, a Vacuum Lifter may be the right choice for your operation. With its versatility, ease of use, and safety features, this material handling equipment can help you improve efficiency, reduce the risk of injury, and get the job done more effectively.
Specification:
| Model Type | VGL300-3.5 | VGL400-3.5 | VGL500-3.7 | VGL600-3.7 | VGL800-4.5 |
| Load Capacity | 300kg (retract) 150kg (extend) |
400kg (retract) 200kg (extend) |
500kg (retract) 250kg (extend) |
600kg (retract) 300kg (extend) |
800kg (retract) 400kg (extend) |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs |
| Rubber Suction Cap | Ø300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/ 1350kg | 1400/ 1450kg | 1600/1650kg |
Vacuum Glass Lifter has a versatile and flexible design, allowing it to handle glass panels of different sizes and shapes with ease. It can lift glass panels weighing up to several tons and can be customized to meet the specific requirements of different industries.
The equipment is equipped with advanced safety features, including an automatic shut-off system, overload protection, and a non-slip platform surface, ensuring that workers can operate safely and confidently at all times.
