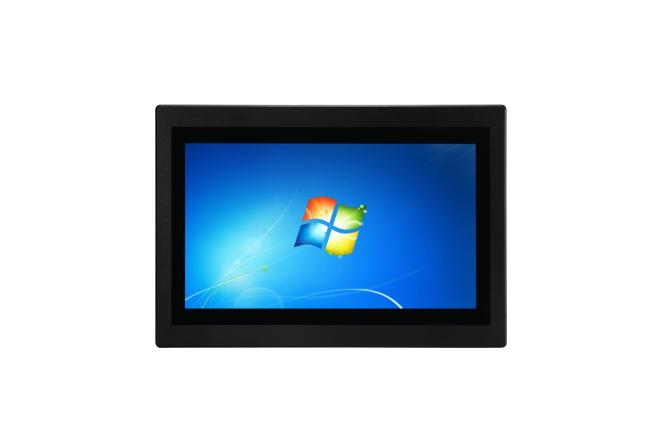

12.5" IP65 Panel PC Rugged Waterproof Resistive Touch Panel Wireless

Price Negotiable

Price: TBA

MOQ: 1PCS

Delivery Time: 7-10 Work Days

Brand: LONGYU

Product Description

HD display color realistic, excellent workmanship and quality assurance, simple wireless space saving, ergonomic design is stable and reliable, widely used.

LCD face-plate
Backlight technology	Led
Luminance	250 cd/m²
Contrast ratio	3000:1
Visual Angle	Horizontal: 178 / vertical: 178
Response time	25ms(GTG)
Display color	262K(6bit) Colors
Display resolution	1920x1080 (16:9)
Frequency of refresh	60Hz
Input resolution	1920x1080 @ 60Hz

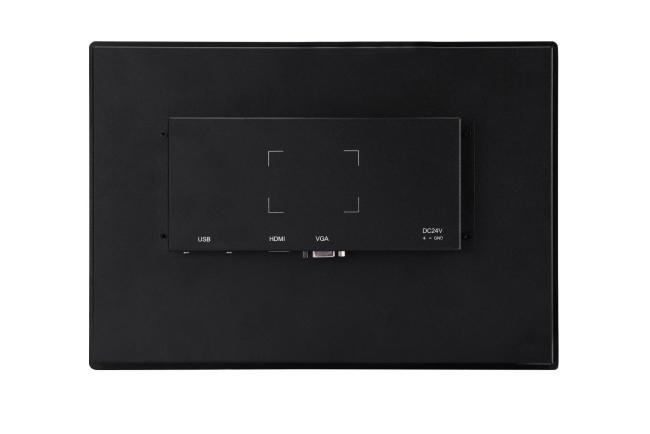

Junctor	VGA / HDMI
OSD function
OSD control	Button
OSD language	English, Chinese
Touch screen parameters
Glass	3mm black screen screen tempered glass
Touch point number	10
Touch technology	Projective capacitor (G + G)
The pen type	Fingers, hands with gloves, and a conductive stylus
Waterproof performance	Touch surface is not affected by water droplets or water vapor
Calibration	No calibration tool
Response time	7ms-12ms
Interlinkage	USB2.0(Type B socket)
Multitouch control protocol support	Windows
Operating system	Win 7/8,Android,Linux
Mechanical parameters
Dimension	383 x 249 x 48 mm
Packing measurement	685 x 155 x 475 mm
Weight (approx)	6 kg / 8 kg
Wall hanging form	VESA,MIS-E,C
Electrical parameters
Power input	DC in: DC 12V3A (50/60 Hz)
Power	≤ 25W (typ.)
Standby power	≤ 2W (typ.)
Built-in speakers	无
Enviromental parameter
Work environment	0 °C ~ 40 °C, 90% RH
Storage environment	-20 °C ~ 60 °C, 90% RH
Fitting
Other	Bracket / power cord / VGA cord / USB cord / power adapter
