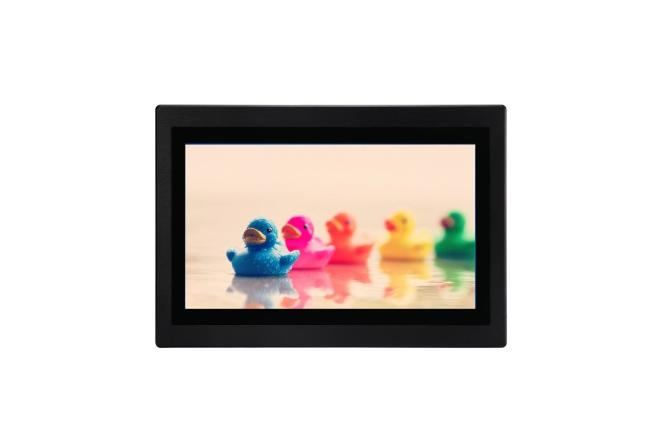

12.5 Inch TFT Multi Touch Panel 10 Point Capacitive Touch Screen Monitor LCD
PRODUCT DESCRIPTION
2.5 Inch TFT Multi Touch Panel 10 Point Capacitive Touch Screen Monitor LCD
LY-A125C Monitor HD display color realistic, excellent workmanship, quality assurance, simple wireless space saving, ergonomic design is stable and reliable, intelligent touch operation is smooth writing, touch software, widely used.
SPECIFICATION
Backlight technology:Led
Luminance:300 cd/m2
Contrast ratio:Horizontal: 160 / Vertical:140
Response time:25ms(GTG)
Display color:16.7M Colors
Display resolution:1920x1080 (16:9)
Frequency of refresh:60Hz
Junctor:VGA / DVI / HDMI
Touch point number:10 point
Glass:3mm black screen screen tempered glass
Touch technology:Projective capacitor (G + G)
The pen type:Fingers, hands with gloves, and a conductive stylus
Waterproof performance:Touch surface is not affected by water droplets or water vapor
Response time:7ms-12ms
Interlinkage:USB2.0(Type B socket)
Multitouch control protocol support:Windows
Dimension:334*230*45mm
OSD control:button
OSD language:English, Chinese
Product Performance:
|
|
| Backlight technology | Led |
| Luminance | 300 cd/m2 |
| Contrast ratio | 3000:1 |
| Visual Angle | Horizontal: 160 / Vertical: 140 |
| Response time | 25ms(GTG) |
| Display color | 16.7M Colors |
| Display resolution | 1920x1080 (16:9) |
| Frequency of refresh | 60Hz |
| Input resolution | 1920x1080 @ 60Hz |
| Junctor | VGA / DVI / HDMI |
|
|
| OSD control | button |
| OSD language | English, Chinese |
|
|
| Glass | 3mm black screen screen tempered glass |
| Touch point number | 10 |
| Touch technology | Projective capacitor (G + G) |
| The pen type | Fingers, hands with gloves, and a conductive stylus |
| Waterproof performance | Touch surface is not affected by water droplets or water vapor |
| Calibration | No calibration tool |
| Response time | 7ms-12ms |
| Interlinkage | USB2.0(Type B socket) |
| Multitouch control protocol support | Windows |
| Operating system | Win 7/8,Android,Linux |
|
|
| Dimension |
334*230*45mm |
| Weight (approx) | 3kg / 5 kg |
| Wall hanging form | VESA,MIS-E,C |
|
|
| Power input | DC in: DC 12V3A (50/60 Hz) |
| Power | ≤ 25W (typ.) |
| Standby power | ≤ 2W (typ.) |
| Built-in speakers | N |
|
|
| Work environment | 0 °C ~ 50 °C, 90% RH |
| Storage environment | -20 °C ~ 60 °C, 90% RH |
|
|
| Other | Bracket / power cord / VGA cord / USB cord / power adapter |
