Embedded Capacitive Touch Panel 23.6 Inch Industrial Capacitive Touch Screen Pc

Price Negotiable

Price: TBA

MOQ: 1 pcs

Delivery Time: 7-10 Work Days

Brand: LONGYU

Product Description

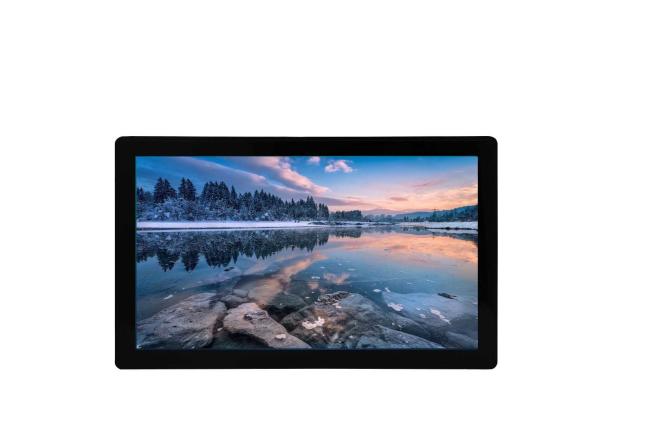

23.6 inch big size Capacitive Touch Screen Pc Embedded Industrial Panel PC

LYA236K20C-BT is a high-performance embedded integrated touch screen with the industrial core core Micro RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 23.6-inch LED LCD display (resolution of 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, man-machine interface, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

High contrast color TFT LCD display supports resolution up to 1920*1080
RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Android11.0/Ubuntu18.04/Linux 4.19
Capactive 10 touch
Industrial grade IP65 dustproof and water proof (operating face)
2 RS232,2 RS232 / RS485 switch;6-Road TTL serial port (reuse with serial port)
1 Route 10 / 100 / 1000 Mbps Ethernet port
12-30V Recommended value of 24V
Product size:586 * 358 * 48mm

Product Performance:

	Performance	Detail
System	CPU processor	RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
	Operating System	Android11.0/Ubuntu18.04/Linux 4.19
	Running memory	2GB/4GB
	EMMC	16GB/32GB/64GB/128GB
	GPU	Mali-G52 1-Core-2EE
Display	Size	23.6 Inch
	Resolving power	1920 * 1080
	Touch form	Capactive 10 touch
	Luminance	300 cd/ m²(Select a 450cd / m² s)
	Angle of view	Full perspective
Material	Material quality	Plastic face frame, metal back cover
	Way to stall	Flat, outer, embedded
	IP protection grade	Industrial grade IP65 dustproof and water proof (operating face)
Power	Power interface	3 PIN*2.54mm terminal DC24V provides power supply
Power	Power input	12-30V Recommended value of 24V
Environmental Characteristics	Working temperature	-10℃ ~ 60℃
	Storage temperature	-20℃ ~ 70℃
	Operating humidity	5-90 RH%
	Serial port	2 RS232,2 RS232 / RS485 switch; 6-way TTL serial port (reuse with serial port)
	Audio interface	1-way MIC interface
	Gigabit Ethernet interface	1 Route 10 / 100 / 1000 Mbps Ethernet port
	HDMI interface	1-Way HDMI output, up to 3840 * 2160 resolution
	TF	1-Route TF card interface
	SIM card	1 Standard drawer-type interface with reserved eSIM interface
	RTC	1 Built-in supercapacitor
	WIFI/BT	2.4G WIFI / BT4.2
	GPS	The GPS function 4G module should be replaced
	4G	Expand the miniPCIE 4G module
	GPIO	4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V；
	USB2.0	1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
	USB3.0	1 Vertical USB 3.0 (switch through dial switch)
