HD Industrial Panel PC IP65 Waterproof Linux Tablet PC ROM 32GB
Product Description
IP65 Industrial Tablet 11.6" Android Tablet RAM 2GB ROM 32GB HD 1280X800p Android Tablet
Specifications:
CPU:Intel®Celeron™ J900
RAM: DDR 2GB (Selectable 4Gb)
ROM: 32Gb(Selectable 64Gb)
OS: Windows7, Windows10, Linux,
LCD: 11.6 inch, 1920*1080P IPS Touch Screen
Expansion slot :1 * SATA3.0 7+15P Connector/2*Mini-PCIe (1*mSATA, 1*Wifi+4G)
Relative humidity: 10~95% RH@40°C,non-condensing
Product Performance:
|
system parameter |
CPU | Intel®Celeron™ J900 |
| frequency | 2.0GHz | |
| Running memory | Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB | |
| EMMC | 1 * mSATA(3.0) | |
|
I/O |
network | 2*Realtek® 1Gbps PCIe Ethernet Controller, RJ-45以太网接口 |
| Mic | Realtek® HDA Codec, with MIC/Line-out | |
| USB | 1x USB3.0/3 x USB2.0 | |
| Serial port | 4 x RS-232； 2 x RS-232 / RS-485 | |
| expansion slot | 1 * SATA3.0 7+15P Connector/2*Mini-PCIe (1*mSATA, 1*Wifi+4G) | |

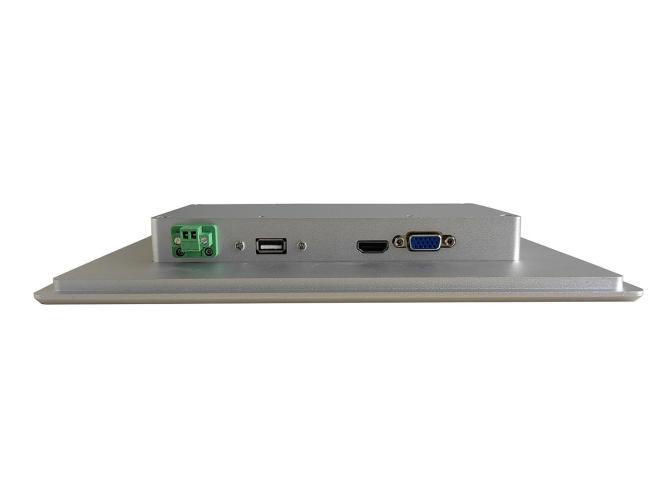

| I/O port | 1 x VGA / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN | |
| Operating System | Operating System | Windows7, Windows10, Linux, |
| Power | Input voltage | 12VDC (12-24VDC) |
| MaximPower Consumption | 25W | |
|
Display |
screen | 11.6" Full HD TFT |
| Resolving power | 1920*1080 | |
| Color Dispay | 16.7MB | |
| Backlight | LED | |
| Backlight life | 50000hrs | |
| Pixel pitch | 0.297×0.297 | |
| Luminance | 350 cd/cm² | |
| Contrast | 700 : 1 | |
| View angle | (L) 80/ (R) 80 / (T) 80 / (B) 80 | |
|
Environmental parameter |
Working temperature | 0 ~ 45° C (32~113°F) |
| 0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT) | ||
| Operating Temperature | -20 ~ 60° C (-4 ~ 140°F) | |
| Relative humidity | 10~95% RH@40°C,non-condensing | |
| Vibration | SSD applied: 1.5 Grms, 5 ~ 500 Hz, 1 hr/axis | |
| EMC | CE/FCC Class B | |
| waterproof | IP65 |
APPLICATIONS
•Security
•CCTV
•Automation
•Kiosks
Company introduction
Wuhan Longyu Intelligent Technology Co., Ltd has a strong R & D, production, sales and management team. Relying on independently developed embedded computer software system and hardware platform technology, we have carefully developed a series of products, the main products include: man-machine interface touch screen, industrial tablet computer all-in-one, ARM industrial motherboard, industrial display, etc. We strive to promote the upgrading of China's manufacturing industry, the research and development of products are widely used in intelligent transportation, automation equipment, terminal self-help equipment, industrial control, electric power, military industry, finance, network security, Marine manufacturing, medical instruments, numerical control, instrumentation, scientific research and other industries, with many well-known enterprises at home and abroad to maintain long-term stable cooperation.
