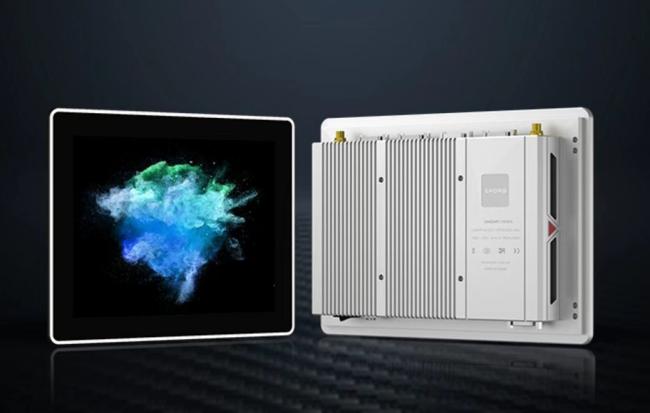

OEM IP65 Panel PC Dustproof Waterproof Capacitive Touch Screen Tablet PC
Product Description
17 Inch Supported X86 System Control Panel PC Capacitive Touch Screen IP65 Waterproof and Dustproof Tablet
Specifications:
Support I n t e l ® C e l e r o n ™ J 1 9 0 0
Support I n t e l ® A T o m x 6 4 2 5 E
Support I n t e l ® C e l e r o n ™ J 6 4 1 2
Support I n t e l ® C e l e r o n ™ J 6 4 1 3
Support I n t e l ® C o r e ™ i 3 - 7 0 2 0 U
Support I n t e l ® C o r e ™ i 5 - 7 3 6 0 U
Support I n t e l ® C o r e ™ i 7 - 6 5 0 0 U
Support I n t e l ® C o r e ™ i 7 - 7 5 0 0 U
● 4GB DDR4L-3200MT/S high speed memory, up to 16G support
● Dual Intel I211AT 10M/100M/1000M adaptive Gigabit network chips
● 6 serial ports (up to 2 x RS485), 4*USB3.0, 1*HDMI, 1*DP
● WiFi, Bluetooth, 4G, 5G and other wireless configuration optional
● Panel mounting hole size (recommended) :376mm x313mm
● Peripheral size IP65:395mm x328mm x 55mm
● Installation method: Support 75mm*75mm VESA installation and front embedded installation
Product Performance:
|
System parameter |
CPU | Intel®Celeron™ J6413 |
| frequency | 1.8~3.0GHz | |
| Running memory | Support DDR4-2133MT/s, Up to 16GB | |
| EMMC | 1 x 3.0" SATA + 1*M.2 2280 M-key | |
|
I/O |
network | 2 x Intel i211 1000Mbps RJ-45 |
| Mic | Realtek ACL662 | |
| USB | 4 x USB3.0/4 x USB2.0 | |
| Serial port | 4 x RS-232； 2 x RS-232 / RS-485 | |
| expansion slot | 1*M.2 2242/50 B-Key support 4G/5G;WIFI | |
| I/O port | DVI-I / 1 x HDMI/2 x GLAN / 4 x USB / Line-out / Mic-in/DC-IN | |
| Physical characteristics | Dimension (W x H x D) |
395mm x328mm x 55mm
|
| hole size (W x H) |
376mm x313mm |
|
| Net Weight |
5.2kg |
|
| Operating System | Operating System | Windows10, Linux |
| Power | Input voltage | 9-36VDC Supports reverse connection protection |
| MaximPower Consumption | 29W | |
|
Display |
screen | 17" Full HD TFT |
| Resolving power |
1280×1024 |
|
| Color Dispay | 16.7MB | |
| Backlight | LED | |
| Backlight life | 30000hrs | |
| Pixel pitch |
0.294*0.294 |
|
| Luminance | 250 cd/cm² | |
| Contrast | 1000 : 1 | |
| View angle | (L) 85/ (R) 85/ (T) 85 / (B) 85 | |
|
Environmental parameter |
Working temperature | 0 ~ 45° C (32~113°F) |
| 0 ~ 50° C (32~113°F) ；-20 ~ 60° C (-4 ~ 140°F) (RT) | ||
| Operating Temperature | -20 ~ 60° C (-4 ~ 140°F) | |
| Relative humidity | 10~95% RH@40°C,non-condensing | |
| Vibration | SSD applied: 1.5 Grms, 5 ~ 500 Hz, 1 hr/axis | |
| EMC | CE/FCC Class B | |
| waterproof | IP65 |
