ODM 10 Inch Touch Screen Panel Resistive Industrial LCD Panel RoHS
Product Description
Touch Screen Panel 10 Inch Industrial Control Board Human Machine Interface LCD Panel

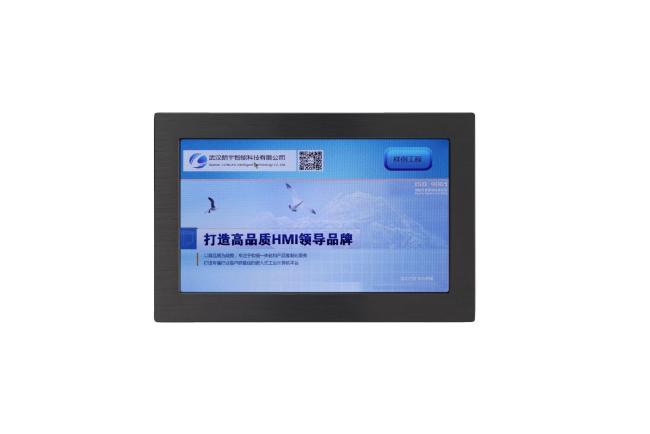

HMIAT3100L is a high-performance embedded integrated man-machine interface with industrial grade cortex A7 (dual core dominant frequency 1.2 GHz) CPU as the core. The product is designed with 10-inch LED LCD (resolution 1024*600) and four wire resistive touch screen. CrossWin industrial configuration software is preinstalled at the same time.
Specifications:
● LCD screen:10-inch TFT LCD, LED backlight, color 65536 bits
● Resolution:1024*600
● Display brightness:300cd/m2
● C P U:Cortex A7,dual core 1.2 Ghz
● Memory:128M DDR2
● Touch screen:Four wire resistive, click more than 1 million times
● Storage device:128M NAND FLASH
● SD card extension:Optional, Max scalability 64G
Product Performance:
| ·LCD screen: | : | 10.1-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 1024*600 |
| Display brightness | : | 300cd/m2 |
| ·C P U | : | Cortex A7,dual core 1.2 Ghz |
| ·Memory | : | 128M DDR2 |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 128M NAND FLASH |
| ·SD card extension | : | Optional, Max scalability 64G |
| ·Interface | : | 1*RS232,2*RS485,1*LAN |
| ·Extension interface | : | 2*USB 2.0(HOST) |
| ·WIFI interface | : | None |
| ·GPIO interface | : | 8 GPIO interface |
| ·Communicationisolation | : | None |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -10℃ to +50℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 12V to 30V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Product Size | : |
W269mm×H174mm×D43.5mm |
| ·Opening size | : |
W258mm×163mm |
