TFT Resistive Touch Panel Interface LCD IP65 10.1 Inch DC 24V
Product Description
10.1 Inch TFT LCD 1*RS232, 2*RS485 Interface Resistive Touch Panel DC 24V

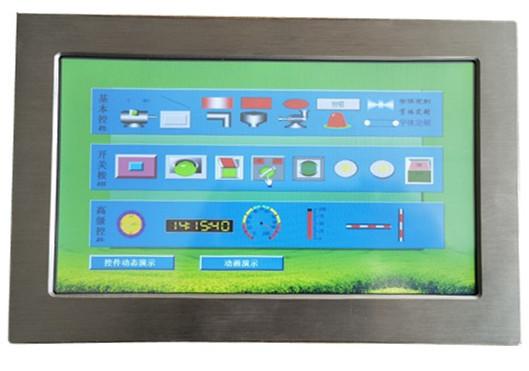

PAC101-4G is an industrial integrated man-machine interface. The product design uses Cortex A8 CPU and CORTEX M0 as the core, and uses a 10.1-inch high-brightness LED liquid crystal display (resolution 1024*600) and a four-wire resistive touch screen. Signal acquisition and data processing can be carried out through multi-channel and multi-mode, and 4G wireless transmission can also be carried out; At the same time, Lonkon industrial configuration software is pre-installed.
Specifications:
- LCD screen:10.1-inch TFT LCD, LED backlight, color 65536 bits
- Resolution:1024*600
- Display brightness:350cd/m2
- C P U:Cortex-A8 600MHz
- Touch screen:Four wire resistive, click more than 1 million times
Memory:512M DDRII RAM
Storage device:8G eMMC electronic disk
Interface:1*RS232,2*RS485
4G :Available
WIFI:Available
Real time clock:Available
Buzzer:Available
- Product Size:W269mm×H174mm×D43.5mm
- Opening size:W258mm×H164 mm
Product Performance:
| ·LCD screen | : | 10.1-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 1024*600 |
| Display brightness | : | 350cd/m2 |
| ·C P U | : | Cortex-A8 600MHz |
| ·Memory | : | 512M DDRII RAM |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 8G eMMC electronic disk |
| ·SD card extension | : | Optional, Max scalability 16G |
| ·Interface | : | 1*RS232,2*RS485 |
| switching value | : | 8-way optical coupler input, 8-way relay output, 4-way optical coupler input / 4-way field tube output (PWM signal) |
| analog variable | : | 8-way input(Selectable) |
| Wireless Wifi | : | 1-way wifi (Selectable) |
| 4G | : | Support full Netcom 4G(Selectable) |
| ·Extension interface | : | 2*USB 2.0 |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -20℃ to +70℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 24V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Product Size | : | W269mm×H174mm×D43.5mm |
| ·Opening size | : | W258mm×H164 mm |

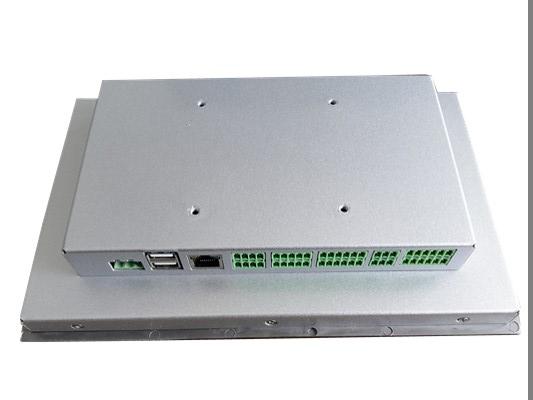

2.Industrial Ethernet interface:
PAC101-4G all-in-one has one Ethernet port and uses an RJ45 socket. Can be used to update download project; Can be connected with computer, PLC, other industrial displays and other equipment communication.
3.USB port:
PAC101-4G all-in-one computer has one USB port. It can be connected to mouse, keyboard, USB mass storage device, etc. (Please use USB devices with power less than 3W)
4. interface:
PAC101-4G all-in-one machine has one RS232 communication channel and one RS485 communication channel, and the two communication channels can be used simultaneously
