HMI Resistive Touch Screen Panel PC 21.5 Inch Embedded Integrated

Price Negotiable

Price: TBA

MOQ: 1 pcs

Delivery Time: 7-10 Work Days

Brand: LONGYU

Product Description

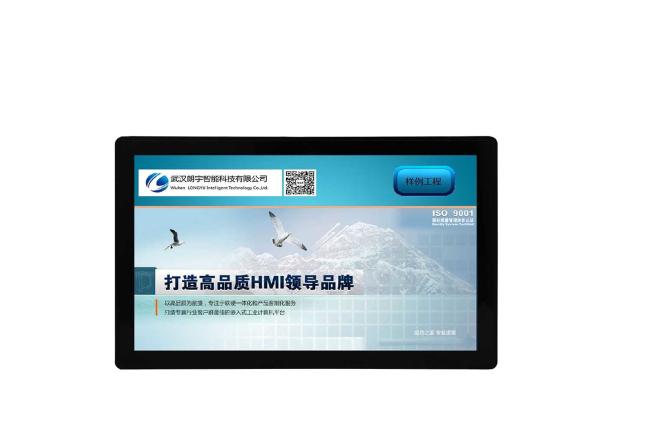

21.5-inch Industry Hmi resistive Touch Screen Panel PC

HMIAT6215 is a high-performance embedded integrated man-machine interface based on the industrial-grade whole-purpose T3 Cortex A7 quad-core 1.2G main frequency CPU. This product is a 21.5-inch human-machine interface product designed by domestic platform device, which uses 21.5-inch high-light LED LCD display (resolution 1920*1080) and 10-point capacitive touch screen. Meanwhile, Lonkon industrial configuration software is pre-installed.

Specifications:

● LCD screen:21.5-inch TFT LCD, LED backlight, color 65536 bits

● Resolution:1920*1080

● Display brightness:600cd/m2

● C P U:Cortex A7,four core 1.2 Ghz

● Memory:1G DDR3 RAM

● Touch screen:Four wire resistive, click more than 1 million times

● Storage device:8G eMMC electronic disk

● Real time clock:Available

● Buzzer:Available

● Product Size:W533 mm×H324mm×D48mm

● Opening size:W522mm×H313mm

Product Performance:

·LCD screen:	:	21.5-inch TFT LCD, LED backlight, color 65536 bits
·Resolution	:	1920*1080
Display brightness	:	600cd/m2
·C P U	:	Cortex A7,four core 1.2 Ghz
·Memory	:	1G DDR3 RAM
·Touch screen	:	Four wire resistive, click more than 1 million times
·Storage device	:	8G eMMC electronic disk
·SD card extension	:	Optional, Max scalability 64G
·Interface	:	2RS232R,3S485 Expandable 2CAN port,2LAN
·Extension interface	:	2*USB 2.0(HOST)
·Real time clock	:	Available
·Buzzer	:	Available
·Operational temperature	:	-20℃ to +70℃
·Degree of protection	:	IP 65( operating surface)
·Input voltage	:	12V to 30V Wide range input voltage
·Anti interference	:	Power frequency magnetic field interference level 5,Magnetic field strength 100A / M
·Product Size	:	W533 mm×H324mm×D48mm
·Opening size	:	W522mm×H313mm
