21.5 Inch Industrial Waterproof Tablet PC HIM TFT LCD 1024*768
Product Description

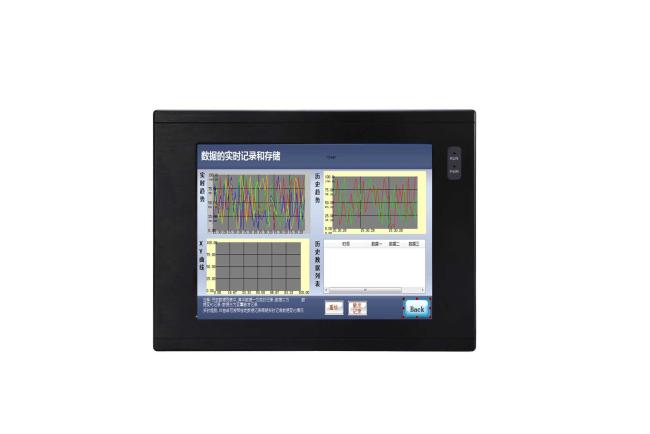

Industrial Large him 15 inch 21.5 inch Waterproof Tablet PC 1024*768
HMIAT6150 is a high-performance embedded integrated man-machine interface based on the industrial-grade whole-purpose T3 Cortex A7 quad-core 1.2G main frequency CPU. This product is a 15-inch human-machine interface product designed by domestic platform device, which uses 15-inch high-light LED LCD display (resolution 1024*768) and 10-point capacitive touch screen. Meanwhile, Lonkon industrial configuration software is pre-installed.
Specifications:
● LCD screen:15-inch TFT LCD, LED backlight, color 65536 bits
● Resolution:1024*768
● Display brightness:300cd/m2
● C P U:Cortex A7,four core 1.2 Ghz
● Memory:1G DDR3 RAM
● Touch screen:Four wire resistive, click more than 1 million times
● Storage device:8G eMMC electronic disk
● SD card extension:Optional, Max scalability 16G
● Input voltage:12V to 30V Wide range input voltage
● Degree of protection:IP 65( operating surface)
Product Performance:
| ·LCD screen: | : | 15-inch TFT LCD, LED backlight, color 65536 bits |
| ·Resolution | : | 1024*768 |
| Display brightness | : | 300cd/m2 |
| ·C P U | : | Cortex A7,four core 1.2 Ghz |
| ·Memory | : | 1G DDR3 RAM |
| ·Touch screen | : | Four wire resistive, click more than 1 million times |
| ·Storage device | : | 8G eMMC electronic disk |
| ·SD card extension | : | Optional, Max scalability 64G |

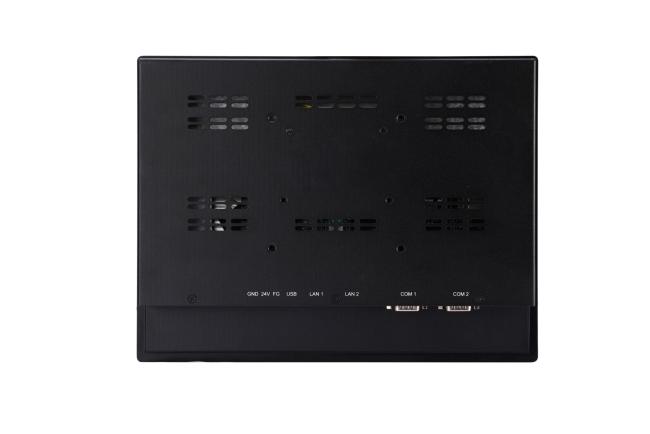

| ·Interface | : | 2*RS232R,3*S485 Expandable 2*CAN port,2*LAN |
| ·Extension interface | : | 2*USB 2.0(HOST) |
| ·Real time clock | : | Available |
| ·Buzzer | : | Available |
| ·Operational temperature | : | -20℃ to +70℃ |
| ·Degree of protection | : | IP 65( operating surface) |
| ·Input voltage | : | 12V to 30V Wide range input voltage |
| ·Anti interference | : | Power frequency magnetic field interference level 5,Magnetic field strength 100A / M |
| ·Product Size | : |
W393mm×H302mm×D48.5mm |
| ·Opening size | : |
W305mm×H235mm |
