China Linux Capacitive Touch Screen LCD Panel Rk3568 RJ45 27 Inch Touch Tablet for sale

Linux Capacitive Touch Screen LCD Panel Rk3568 RJ45 27 Inch Touch Tablet

Price Negotiable

Price: TBA

MOQ: 1 pcs

Delivery Time: 7-10 Work Days

Brand: LONGYU

Product Description

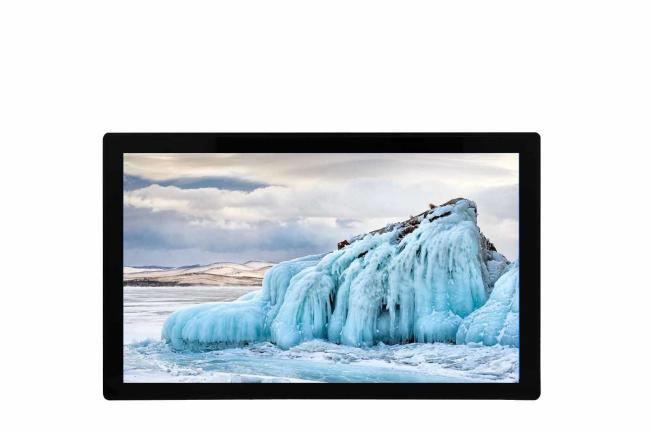

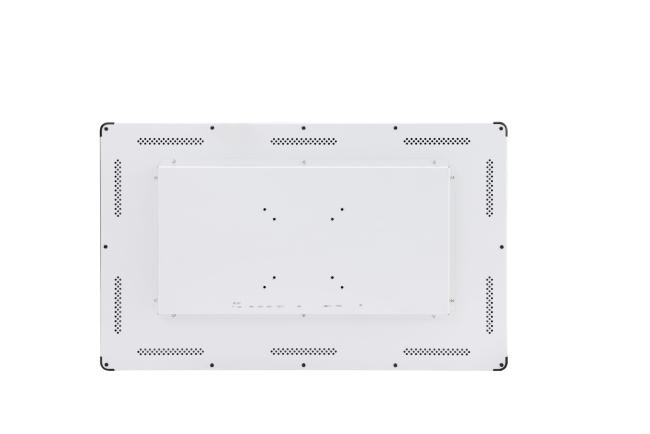

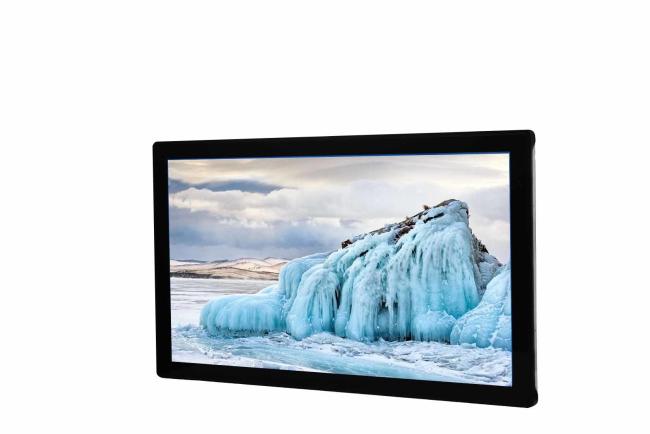

Touch Tablet 27 Inch Linux Capacitive Touch Screen LCD Panel Rk3568 RJ45

LYX236K20C is a high-performance embedded integrated touch screen with the industrial core core Micro RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 23.6-inch LED LCD display (resolution of 1920 * 1080) and a 10-point capacitive touch screen. It supports USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, man-machine interface, small and medium-sized medical analyzer and other industry applications.

Features:

High contrast color TFT LCD display supports resolution up to 1920*1080
RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
Linux 4.19/Android11.0/Ubuntu18.04/
Industrial grade IP65 dustproof and water proof (operating face)
2 RS232,2 RS232 / RS485 switch;6-Road TTL serial port (reuse with serial port)
1 Route 10 / 100 / 1000 Mbps Ethernet port
12-30V Recommended value of 24V
Product size:662 * 401 * 46mm
Size:27 Inch
Resolving power:1920 * 1080
Touch form:Capactive 10 touch
Power interface:3 PIN*2.54mm terminal DC24V provides power supply
Power input:12-30V Recommended value of 24V
Working temperature:-10℃ ~ 60℃
Storage temperature:-20℃ ~ 70℃

Product Performance:

	Performance	Detail
System	CPU processor	RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
	Operating System	Android11.0/Ubuntu18.04/Linux 4.19
	Running memory	2GB/4GB
	EMMC	16GB/32GB/64GB/128GB
	GPU	Mali-G52 1-Core-2EE
Display	Size	27 Inch
	Resolving power	1920 * 1080
	Touch form	Capactive 10 touch
	Luminance	300 cd/ m²(Select a 450cd / m² s)
	Angle of view	Full perspective
Material	Material quality	Plastic face frame, metal back cover
	Way to stall	Flat, outer, embedded
	Product size	662 * 401 * 46mm
	IP protection grade	Industrial grade IP65 dustproof and water proof (operating face)
Power	Power interface	3 PIN*2.54mm terminal DC24V provides power supply
Power	Power input	12-30V Recommended value of 24V
Environmental Characteristics	Working temperature	-10℃ ~ 60℃
	Storage temperature	-20℃ ~ 70℃
	Operating humidity	5-90 RH%
	Serial port	2 RS232,2 RS232 / RS485 switch; 6-way TTL serial port (reuse with serial port)
	Audio interface	1-way MIC interface
	Gigabit Ethernet interface	1 Route 10 / 100 / 1000 Mbps Ethernet port
	HDMI interface	1-Way HDMI output, up to 3840 * 2160 resolution
	TF	1-Route TF card interface
	SIM card	1 Standard drawer-type interface with reserved eSIM interface
	RTC	1 Built-in supercapacitor
	WIFI/BT	2.4G WIFI / BT4.2
	GPS	The GPS function 4G module should be replaced
	4G	Expand the miniPCIE 4G module
	GPIO	4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V；
	USB2.0	1 Vertical plug interface USB 2.0,4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
	USB3.0	1 Vertical USB 3.0 (switch through dial switch)
