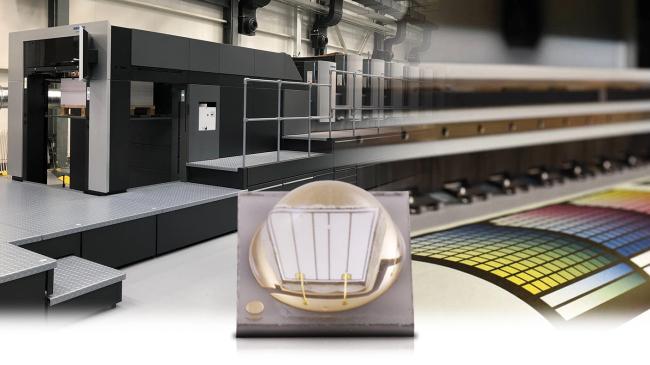

SMD3535 UV LED Chip 365nm 385nm 395nm 405nm 3.5V 3.6V 3.7V CUN(x)6A1G Series
Seoul Viosys SVC CUN(x)6A1G Series SMD3535 UV LED Chip 365nm 385nm 395nm 405nm
360~410nm UV LED Chip
Description
The High Power UV LED series is designed for high current operation and high power output applications.
It incorporates an advanced SMD design.
The Z5 NUV LED is the ideal UV light source for curing, printing and inspection applications. Ideal UV light source for inspection applications.
Application
| Printing | Dental Curing | UV Curing |
| Crime Inspection | Oil Leak Detection | Fluorescence Photography |
Parameters
| Item | Specifications |
| Model | Cun(x)6A1G Series |
| Rated voltage | 3.5-3.8V |
| UVA radiation flux | 1.85-2.1W |
| UVA Wavelength |
360~370nm 380~390nm 390~400nm 400~410nm |
| Input current | 1A |
| Input power | 1760-2360mW |
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
