255/265/275/285/310/350nm UV Led For Sterilization Disinfection Water
TH-UV(X)WP-TO46H Series 255/265/275/285/310/350nm uv led for Sterilization Disinfection Water Quality Testing

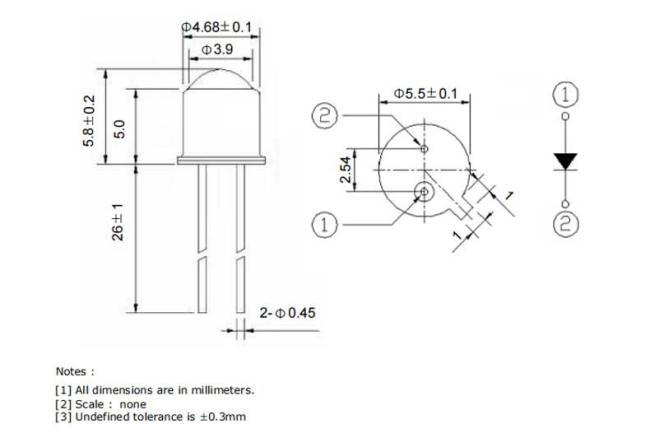

TH-UV(X)WP-TO46H Series
255nm/265nm/275nm/285nm/310nm/340nm UV LED
Disinfection/Fluorescent Spectroscopy/
Chemical and Biological Analysis
Application
| Disinfection | Fluorescent Spectroscopy | Chemical and Biological Analysis |
Parameters
| Item | Specifications |
| Model | TH-UV(X)WP-TO46H1 Series |
| Rated voltage | 3.6~7V |
| UVC radiation flux | 0.5~2.5mW |
| UVC Wavelength | 255nm/265nm/275nm/285/310nm/340nm |
| Input current | 20mA |
| Input power | 0.072-0.14W |
| Working temperature | -10℃-85℃ |
| Storage temperature | -40℃-100℃ |
Remarks
• Peak wavelength( λ p) The measurement tolerance is ± 3nm.
• Radiation flux( Φ e) Measurement tolerance ± 10%.
• The measurement tolerance of forward voltage (VF) is ± 3%.
Usage method
Warning Instructions For Use
1. To avoid energy decay, keep the front glass clean.
2. It is recommended not to have objects blocking the light before the module, which will affect the sterilization effect.
3. Please use the correct input voltage to drive this module, otherwise the module will be damaged.
4. The outlet hole of the module has been filled with glue, which can prevent water leakage, but it is not
recommended that the glue of the outlet hole of the module directly contact the drinking water.
5. Do not connect the positive and negative poles of the module reversely, otherwise the module may be damaged
6. Human safety
Exposure to ultraviolet light can cause damage to human eyes. Don't look at ultraviolet light directly or indirectly.
If exposure to ultraviolet rays is unavoidable, appropriate protective devices such as goggles and clothing should be
used to protect the body. Attach the following warning labels to products / systems
