Spherical 86wc-10co-4cr Tungsten Carbide Powder Woka3652 For Rollers
Spherical 86wc-10co-4cr Tungsten Carbide Cobalt Chrome Alloy Woka3652 Tungsten Carbide Cobalt Chrome Powder For Rollers
WC-10Co-4Cr is a tungsten carbide powder for HVOF thermal spray coatings. It'better at the corrosion ability than WC-Co and WC-Ni or ther tungsten carbide-based materials .The operating temperatures up to 900°F (482°C). It's widely used for water conservancy, mining and other industries to transport spiral stick, impeller, etc. to strengthen the repair.
Chemical Composition
| Item | Standards | Mesured Data |
| Carbon total | 5.00-5.80 | 5.46 |
| Free Carbon | ≤0.12 | 0.09 |
| WC | 85.0-87.0 | ---- |
| Co | 9.0-11.0 | 9.76 |
| Fe | ≤0.5 | 0.04 |
| O | ≤0.10 | 0.034 |
Typical Deposit Characteristics
| HV0.3 | Porosity % | Bonding strength | Deposition efficiency |
| 1000-1400 | AVG＜1% | ＞70Mpa | ≥47% |
Physical Properties
| Item | Flow Rate(s/50g) | Apparent Density (g/cm3) |
| Standards | ≤25 | ≥4.4-5.2 |
Packing Details

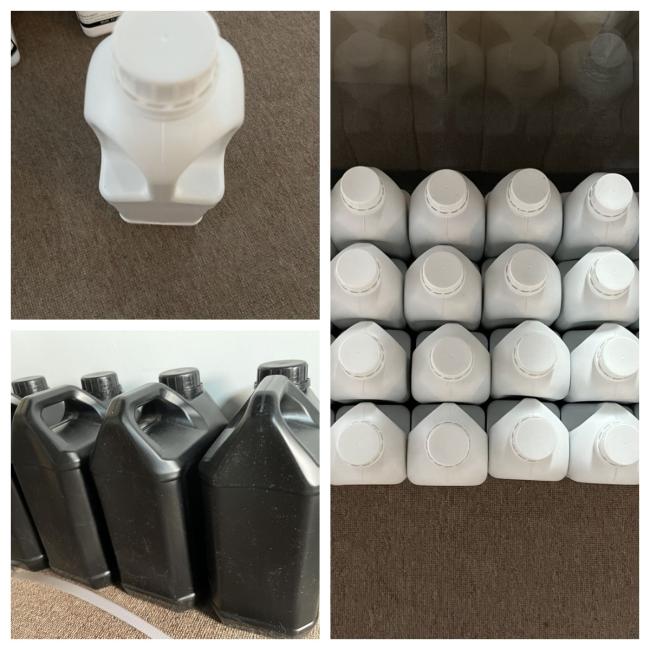

Granularity:-45/+15μm Packing: 5 kg/bottle 4 bottles/box
Typical uses and Applications
1.The metallurgical industry guide roller, conveyor roller, sink stick
2.Aper printing machinery corrugated stick, anilox stick, pressure bachelor and so on
3.Water conservancy, mining and other industries spiral rod, impeller, etc. to strengthen the repair
Type We Could Offer
Thermal spray powder-Carbide
| WL TYPE | Kennametal | PMET | Others | Size |
| WL-WC 12Co | JK112 | Pmet 88-12 | 1342VM/Woka 3102 | Customized |
| WL-WC 10Co 4Cr | JK120 | Pmet 86-10-4 | 1350VM/Woka 3652 | Customized |
| WL-WC 17Co | JK117 | Pmet 83-17 | 1343VM/Woka 3202 | Customized |
| WL-WC 10Ni | JK6189 | Pmet 90-10 | 1310VM/Woka 3302 | Customized |
| WL-Cr3C2-25NiCr | JK135 | Woka7200 | Customized | |
| WL-Cr3C2-20NiCr | Woka7100 | Customized | ||
| WL-60%WC+NiCrBSi | Customized | |||
| WL-60%WC+NiBSi | Customized |
