Polystel Co 12 Erccocr-B Hard Facing Rod Cobalt Based Alloy Stellite 12 Green High Temperature High Pressure Valve
Polystel Co 12 Erccocr-B Cobalt Based Alloy Stellite 12 Green High Temperature And High-Pressure Valve
Product Description
WLCo 12 cobalt based rod that produces a deposit for high heat and corrosion resistance, with excellent wear properties. The Machineability, WLCo 12 makes it a good choice for knife cutting edges in the carpet, paper, and plastic industry. WLCo 12 deposits provide resistance to all types of wear, including galling. It can be applied to all weldable steels, including stainless steels.
Common Names: Stellite 12 Polystel 12 Standard: AWS 5.21-2001 ERCoCr-B
Chemical Composition(%)
|
C |
Si |
Mn |
Mo |
Cr |
W |
Ni |
Fe |
Co |
|
1.4 |
1.30 |
≤1.00 |
≤1.00 |
30.00 |
8.5 |
≤3.00. |
≤3.00 |
Rest |
Characterisitic
|
Abrasion Resistance |
Good |
|
Impact Resistance |
Good |
|
Corrosion Resistance |
Good |
|
Hardness |
HRC 44-50 |
|
Deposit Layers |
2 Max |
|
Deposit Cross Checks |
* No |
|
Magnetic |
No |
|
Hot Wear Hardness |
Good |
|
Machineability |
Carbide Tools |

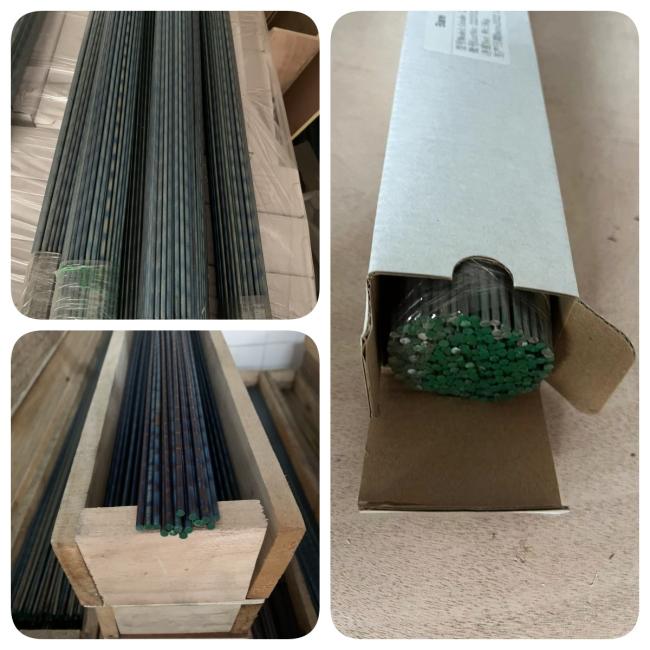

Packing Details
For length 350mm 500mm pack in carton each 5kg
For 1000mm packing in 5kg tube, 4 tubes in one 20kg carton
For length more than 1000mm, pack in wooden box directly
Applications
Used for pre-protection of plastics, paper-making, chemical fiber, cutter and blade Outlet valve sealing surface
High temperature and high-pressure valve
Type We Could Offer
| Trademark | Nominal Chemical Composition | HRC | Application | |||||||||
| C | Cr | Si | W | Ni | Fe | Mn | Mo | Co | B | |||
| WL Co1 | 2.45 | 30.0 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-58 | Valve seat insets, bearing, sawteeth, rotary ring, Pump Sleeves | |
| WL Co3 | 2.4 | 30.5 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-56 | Valve seat insets,steel mill guide roll, wearing panel of cracker blade, etc. | |
| WL Co4 | 1.0 | 31.0 | 1.0 | 14.0 | ≤3.0 | ≤1.0 | ≤0.5 | ≤0.5 | Bal. | 45-50 | Hot extrusion die, dry battery industry | |
| WL Co6 | 1.2 | 29.0 | 1.0 | 4.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 40-46 | Engine valve, high temperature valve, turbine blade | |
| WL Co12 | 1.4 | 30.0 | 1.3 | 8.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 44-50 | Pressure valves, sawteeth screw fights | |
| WL Co20 | 2.5 | 32.0 | 1.0 | 17.0 | ≤3.0 | ≤3.0 | ≤0.5 | ≤1.0 | Bal. | 54-59 | Wear plate, bearing sleeve, etc. | |
| WL Co21 | 0.2 | 27.0 | 1.0 | 0.2 | ≤3.0 | ≤2 | ≤1.0 | ≤5.5 | Bal. | 20-40 | Fluid valve seat, turbine blades, hot forging die | |
| WL Co25 | 0.05 | 20.0 | 1.0 | 15.0 | 10.0 | ≤2.0 | ≤1.5 | ≤1.0 | Bal. | 24 | High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc. | |
| WL Co31 | 0.5 | 26.0 | 1.0 | 7.5 | 10.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 30-35 | Extrusion die, steam turbine blade, etc. | |
| WL Co32 | 1.8 | 26.0 | 1.2 | 12.0 | 22.0 | ≤1.5 | ≤0.5 | ≤1.0 | Bal. | 40-45 | Engine inlet and exhaust valve | |
| WL Co190 | 3.2 | 26.0 | 1.0 | 14.0 | ≤1.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 54-60 | Petroleum drill bit, mining industry | |
| WL CoT400 | 0.08 | 8.5 | 2.6 | 1.5 | ≤1.5 | ≤1.0 | 28 | Bal. | 0.8 | 50-60 | Valve and roller path, plastic extruder in strongly corrosive | |
| WL CoT800 | 0.08 | 18.0 | 3.4 | ≤1.5 | 1.5 | ≤1.0 | 28 | Bal. | 0.8 | 52-58 | Valve and roller path, plastic extruder in strongly corrosive | |
