Tafa 13T Thermal Spray Wire 1.6mm 2.0mm 3.17mm Molybdenum Alloy Wire
Molybdenum Wire Tafa 13T Thermal Spray Wire Used For Thermal Spray Dia 1.6mm 2.0mm 3.17mm
Product Description
Moly wire is a pure (99.95%) molybdenum wire specifically designed for arc spraying. It produces dense,well-bonded coatings with excellent wear resistance and good corrosion resistance. It is particularly effective for applications where scuffing or galling is a problem, such as piston rings, shift forks and synchronizing rings.
Equivalent to: Tafa 13T, Metco Sprabond, PMET 899
Surface Preparation
Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning.Recommended method of preparation is, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.
Chemical Composition(wt%)
| Mo |
| 99.9 |
RECOMMENDED SPRAY PARAMETERS
| Diameter | Air Pressure | Voltage | Amperage | Standoff |
| 3.17mm | *50 - 60 psi | *32 - 34 | *100 - 250 | *3 – 6 in (8 - 15cm) |

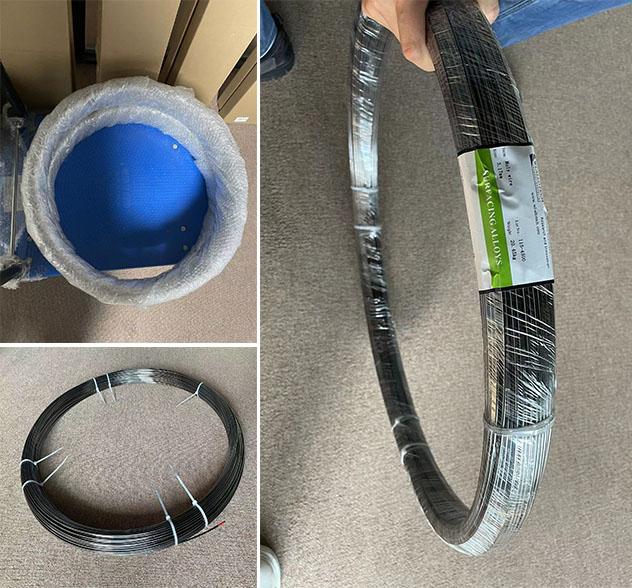

Packing Details
| Diameter | DimensionTolerance | Packing | Wire Weight |
| 1/16"(1.6mm) | +0/-0.05 | Coil Form |
10-50kgs/coil |
| 2.0mm | +0/-0.05 | Coil Form | 10-50kgs/coil |
| 1/8"(3.17mm) | +0/-0.05 | Coil Form | 10-50kgs/coil |
Applications
Wear Resistant Coatings
Corrosion Resistance
Type We Could Offer
Thermal spray wire-Nickel based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-NiAl95/5 | 75B | 885 | 8400 | 1.6/2.0/3.17mm |
| WL-NiAl80/20 | 79B | 884 | 405 | 2.0/3.17mm |
| WL-NiCr80/20 | 06C | 821 | 8450 | 1.6/2.0/3.17mm |
| WL-Monel400 | 70T | 877 | Monel | 1.6/2.0/3.17mm |
| WL-NiCrTi | 45CT | 889 | 8500 | 1.6/2.0/3.17mm |
| WL-Inconel718 | 78T | 818 | 8718 | 1.6/2.0/3.17mm |
| WL-Inconel625 | 71T | 860 | 8625 | 1.6/2.0/3.17mm |
| WL-Alloy-C276 | 77T | 876 | 8276 | 1.6/2.0/3.17mm |
| WL-NiCrAl(P) | 73MXC | 886 | 8443 | 1.6/2.0mm |
| WL-NiCrAlY(P) | 76MXC | 887 | 884 | 1.6/2.0mm |
| WL-NiMoAl(P) | 74MXC | 888 | 8447 | 1.6/2.0mm |
Thermal spray wire-Iron based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-SS420 | 60T | 720 | Metcoloy 2 | 1.6/2.0/3.17mm |
| WL-SS304/304L | 80T | 710 | Metcoloy 1 | 1.6/2.0/3.17mm |
| WL-SS316/316L | 85T | 730 | Metcoloy 4 | 1.6/2.0/3.17mm |
| WL-FeCrAl | Alcro | 731 | 1.6/2.0mm | |
| WL-FeCrBSi(P) | 95MXC | 273 | 1.6/2.0mm | |
| WL-FeCrNiB(P) | 96MXC | 1.6/2.0mm | ||
| WL-Tungsten Carbide(P) | 97MXC | 297 | Duocor | 1.6/2.0mm |
| WL-LCr Carbide(P) | 98MXC | 223 | 1.6/2.0mm | |
| WL-FeAl(P) | 35MXC | 50 | 1.6/2.0mm | |
| WL-HCr Carbide(P) | 226 | Sm8222 | 1.6/2.0mm |
Thermal spray wire-Copper based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Copper | 1.6/2.0/3.17mm | |||
| WL-CuSn1 | 05T | 1.6/2.0/3.17mm | ||
| WL-CuAl8 | Sprabronze AB | 1.6/2.0/3.17mm | ||
| WL-CuAl10 | 10T | 590 | Sprabronze AA | 1.6/2.0/3.17mm |
Thermal spray wire-Zinc & Aluminium based
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Pure Al | 01T | 699 | Aluminum | 1.6/2.0/3.17mm |
| WL-Pure Al Grade 1100 | 1.6/2.0/3.17mm | |||
| WL-Pure Zn | 02Z | 540 | Zinc | 1.6/2.0/3.17mm |
| WL-AlMg5 | Metco AlMg | 1.6/2.0/3.17mm | ||
| WL-ZnAl85/15 | 02A | Zn/Al | 1.6/2.0/3.17mm |
Thermal spray wire-Other based alloy
| WL TYPE | Tafa | PMET | Metco | Size |
| WL-Molybdenum wire | 13T | 899 | Sprabond | 1.6/2.0/3.17mm |
| WL-Babbitt wire | 04T | 542 | Sprababbitt | 1.6/2.0/3.17mm |
| WL-Tin wire | 02W | 549 | Metco Tin | 1.6/2.0mm |
| WL-Ti wire | 14T | 1.6/2.0mm |
