M28Z-100L/LS-2STT 28*28/48.5*248mm Electric Cylinder With 28mm Stepper Motor And 100mm Stroke Trapeziod Screw

1. Products Overview

As an auxiliary device that is commonly used, electric cylinders can be used everywhere in industrial applications. Electric cylinders are mainly used in the fields of entertainment, military industry, automobiles, industry and other fields, such as: electronics, medicine, food and beverages, carpentry processing, assembly testing equipment, material transportation, packaging equipment, paper film treatment, etc. As a high precision control device, there are common application scenarios:

1. Packing

In the process of installing the product, the pressure of the push rod is needed, and a certain degree of thrust needs to be maintained in a specific location. Capture and placement, where multi-axis synchronization is used here.

2. Stacking

The multi-point order positioning in the stack application requires the entire stroke action.

3. Sorting and transfer

There are also multi-axis high speed collaborative actions.

4. Nozzle operation

The electric cylinder can be easily controlled and adjusted the depth of the nozzle on the position control of the canned nozzle; the use of an electric cylinder push rod on the nozzle of the bottle blowing equipment can allow the position of multiple nozzles to control The nozzle is inserted, so that many complex mechanical synchronization devices can be saved.

5. Liquid filling

In the application of liquid irrigation, the characteristics of the electrical cylinder push rod are also used at the same time. The more typical is the filling of the yogurt cup.

6. Transfer correction

In the application of some thin -film material transportation and processing, the straightness of the real -time correction material is required. The electric cylinder push rod can easily achieve this dynamic and fast and accurate position adjustment.

7. Welding robotics

Applying the electric cylinder pushing rod to the opening and closing movements of the welded fixture can effectively simplify the mechanical structure of the fixture and greatly reduce the weight of the fixture, which can help the robotic arm equipment to improve its operating speed and efficiency.

8 Valve flow control

In addition to machinery and equipment, it is also suitable for the use of valve flow control in many process control fields. The servo positioning of the electric cylinder can help achieve dynamic, real -time, and accurate traffic control. Lightweight, simplifying the layout of on -site equipment, high protection level, simple cable connection and installation, easy to maintain.

2. Naming Rules

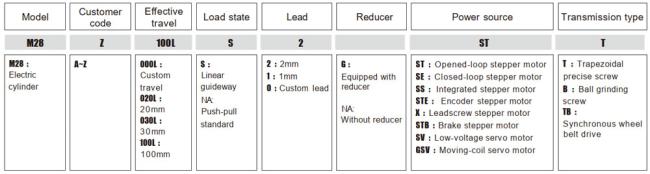

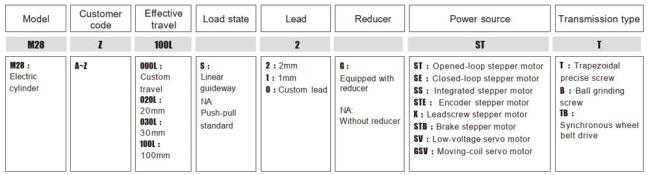

Naming meanings of M28Z-100L-2STT and M28Z-100LS-2STT are as bellow,

3. Main Specifications

Note: The holding force will be lost in the non-energized state, therefore, the vertical load and external force cannot be maintained. Please select the product with electromagnetic brake when the vertical drive is used.

4. Mechanical Drawings

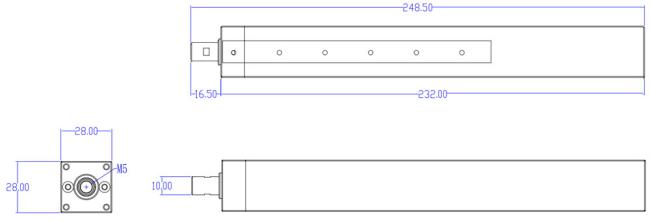

The mechanical drawings of M28Z-100L-2STT is as bellow,

The mechanical drawings of M28Z-100LS-2STT is as bellow,
