Product Description

3 Port 50GHZ DWDM Filter DWDM ITU Component

Single channel 3 port 200GHZ DWDM filter, DWDM C-Band.
Low insertion loss
High channel isolation
Low polarization dependent loss
Exceptional reliability and stability

3 Port 200GHZ DWDM Filter DWDM ITU Component

FIBERWDM’s DWDM ITU Components are the result of years of telecommunication experiences in thin-film filter technology. Individual components are available on ITU channel spacing of 200 GHz.

These devices exceed the requirements of Telcordia GR-1221. They demonstrate low insertion loss and temperature insensitivity, and reliable performance in varieties system applications.

Product

200GHZ DWDM Filter Steel

Features

Low insertion loss
High channel isolation
Low polarization dependent loss
Exceptional reliability and stability

Applications

Access networks
Metro WDM systems
Long haul WDM systems
Enterprise networks

Specifications

Wavelength range	C- or L-band ITU channels 186.6 to 196.1 THz	Technology	TFF (Thin Film Filter)
Passband	≥+/- 33 GHz	Transmission passband ripple	≤0.30dB
Transmission insertion loss	≤1.1dB	Reflection passband ripple	≤0.20dB
Reflection insertion loss	≤0.40dB	Transmission isolation (adj channel)	≥30dB
Transmission isolation (non-adj channel)	≥50dB	Reflection isolation	≥12dB
Polarization dependent loss	≤0.2dB	Polarization mode dispersion	≤0.2ps
Directivity	≥50dB	Return loss	≥45dB
Optical power handling	≥500	Temperature	Operating:-40 to +85℃ Storage:-40 to +85℃
Fiber type	SMF-28e	Package dimension	f∮5.5 xL34mm

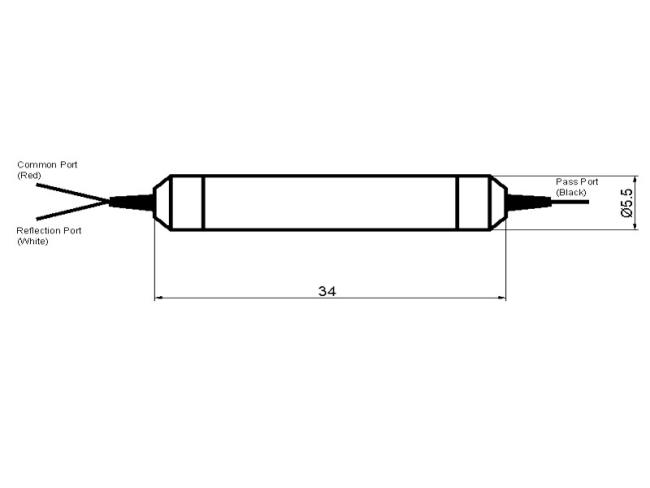

Dimensions drawing(mm)

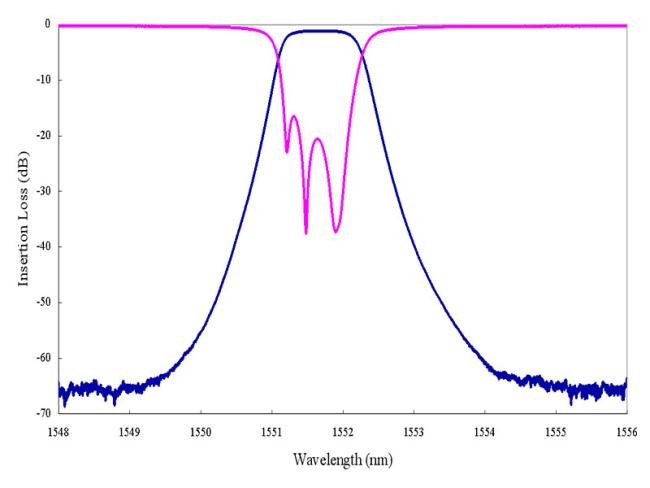

Spectral plot (dB)

Order information

RD-D	- Package	-Connector Type	U/A	-Channel Plan	-Fiber Type	-Fiber Length	-200G
	S: Steel	0: No connector	U: UPC	C19:	25: 250um Fiber	005: 0.5+/-0.1m	200G:200GHZ
	G:Glass	1: LC	A: APC	C21	90: 900um Fiber	01: 1.0+/-0.1m
		2: SC		C23		others
		3: FC		others
		4: Others
