1 X N Multipath Switch Device Fiber Optical Transmission System

Price Negotiable

Price: Negotiation

MOQ: Negotiable

Delivery Time: Negotiable

Brand: FiberWDM

Product Description

1 X N Multipath Channel Switch Device

Optical transmission system
LAN light source/detector auto exchange and optical sensor monitoring system
Optic fiber, Optical passive components, Optical network and cable testing

1 x N Multipath Channel Switch Device

Product Overview

Multipath Channel Switch Device (1 x N switch) is used for selecting and controlling optic path. It has an important role in optical communication and applies to multipoint monitoring of optical transmission systems, LAN light source/detector auto exchange, and optical sensor monitoring systems. It also can be used for optic fiber, optical passive components, optical network, and cable testing.

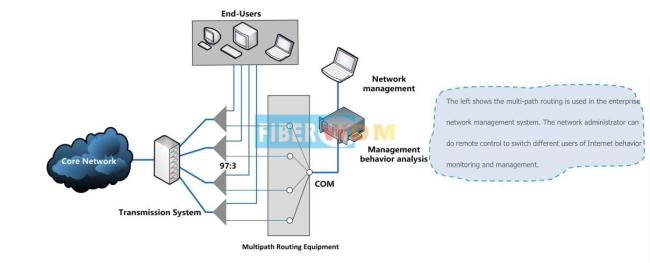

Mechanical Optical Switch Application

Optical transmission system
LAN light source/detector auto exchange and optical sensor monitoring system
Optic fiber, Optical passive components, Optical network and cable testing

(Flow control, Internet behavior management, industrial computer)

Features

Low insertion loss and fast switching
With LCD display and key panel
Control more than one device at a time through serial port
Baud rate setting of serial communication according to the actual situation

Equipment Performance

Parameters	Units	Norm
Insertion Loss	dB	1<N≤12	16<N≤32	32<N≤64	64<N≤128
		Typ:0.8 Max:1.0	Typ:1.0 Max:1.2	Typ:1.4 Max:1.6	Typ:1.9 Max:2.2
Wavelength Range	nm	532~980； 1260~1650
Test Wavelength	nm	650/780/850/980；1310/1490/1550/1625/1650
Return Loss	dB	SM≥50/MM≥30
Crosstalk	dB	SM≥55/MM≥35
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Durability	Cycles	107
Output Transmit Power	mW	≤500
Switching Time	ms	≤10(adjacent channel)
Operating Temperature	℃	-20～+70
Storage Temperature	℃	-40～+85
Power Supply	V	AC 85-264V,50/60Hz or DC(36-72)V
Dimensions	mm	1U W303×D439×H44 (≤16 channels) or customize
		2U W303×D434×H89 (≤130 channels) or customize
