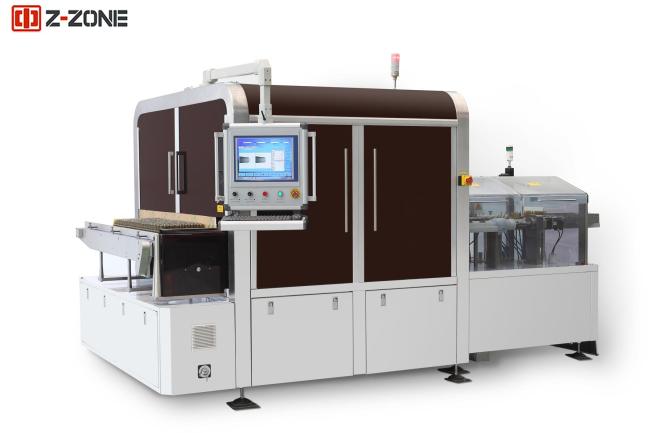

Work Principle

Visual inspection principle is used for inspecting the impurities in the machine, the products rotate at high speed and then stop immediately, while the industrial camera takes photos of them continuously, then the computer system analyze the images to judge whether the products is qualified; and the leak inspection is done by the high voltage discharge principle; finally, the good products and the rejected products to be separated automatically.

Characteristics

1. The whole machine adopts full servo drive and various patent technology design, with completely independent intellectual property rights.

2. The visible impurities inspection conforms to the Knapp regulation which commonly used

3. Leak inspection of the machine can inspect ultra-fine holes and cracks that cannot be done by the traditional methods.

4. Key components and parts are processed by numerical control. The main purchased parts are of international famous brand, making sure of the equipment running stably and reliably.

Main Features

1,Brand new proprietary technology design, more reasonable brand new structure are the advantages of the entire machine, and it is convenient and stabilized for operation and maintenance.

2,The machine adopts entire servo drive to make sure of more accurate transmission and more convenient and fast operation & regulation.

3,The international bottle clamping mode of up and down pressing and the patented bottle rotating power structure are adopted, which not only ensures the consistency of bottle clamping stability and bottle rotating speed, but also facilitates cleaning and maintenance.

4. There is a specially designed large glass inspection station;

5,The rotating bottle servo system and inspection device is set on table-board, and these units completely are separated from each other under the table-board , to make sure it is convenient to operate and maintain and easy to clean, and non-pollution will be generated on device.

6,All the specifications adopts way of fast installing and uninstalling, the plate adopts servo automatic rise and fall way, to make sure to replace the specifications faster.

7,It adopts worm wheel to convey the bottle and can meet the requirements of the entire machine’s linkage.

8,There are various failure alarm and protection functions, in case of malfunction or inappropriate operation, the device can give an alarm or shut down automatically and show breakdown reason information.

9,All the inspection data can be saved, uploaded, and printed.
