China Pharma Ampoule Leak Testing Machine Electric For Liquid Leak for sale

Pharma Ampoule Leak Testing Machine Electric For Liquid Leak

Price Negotiable

Price: 150,000-250,000

MOQ: 1

Delivery Time: 60days

Brand: Z-Zone

Product Description

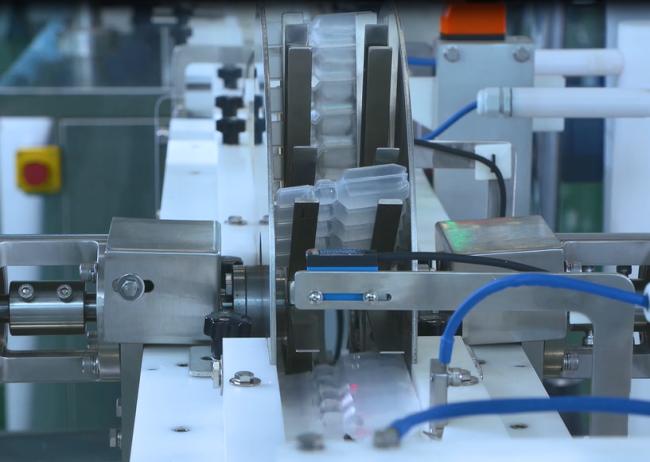

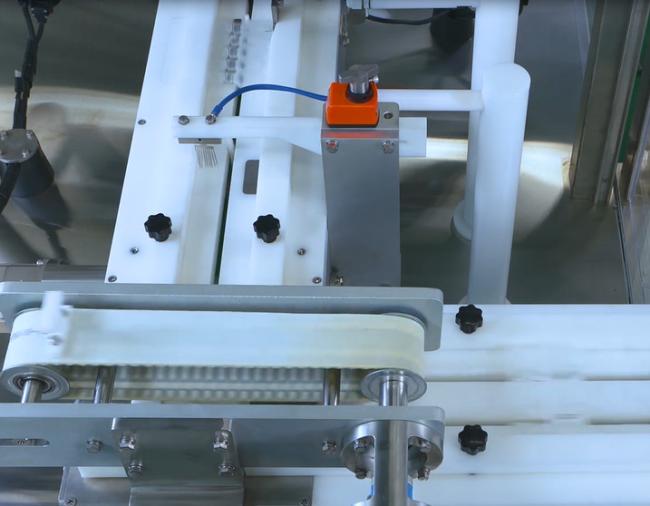

Z-Zone BFS Plastic Ampoule Leak Testing Machine

Applications

The machine is dedicated to detect the conjoined plastic ampoule for possible liquid leak in all directions. As well as conjoined eyedrops, conjoined oral liquid etc. are available.

Parameters

Application	Height of conjoined plastic ampoule 65≤H≤120mm
Length of conjoined plastic ampoule	L≤220mm(customization is available)
Output	0-80 Row/min
Electric capacity	3kW, 380V 50Hz
Detecting Channel Power	200W
Voltage of High frequency high voltage	0～30kV adjustable
Frequency of High frequency high voltage	0～10kHz adjustable
Dimension	2800mm X935mmX1650mm
Weight	about 1200kg

Configuration parameters

No.	Name	Brand
1	W10 64-bit genuine system	Advantech
2	PLC	Mitsubishi
3	Server driver	Mitsubishi
4	Servo motor	Mitsubishi
5	Servo motor	Mitsubishi
6	Servo reducer	Yang Hong/Wan Xin
7	Servo reducer	Yang Hong/Wan Xin
8	Servo reducer	Yang Hong/Wan Xin
9	Industrial computer	Advantech
10	Touch screen	Re-qualcom /NODKA
11	High frequency high voltage power supply	Zhengzhong
12	High frequency high voltage power controller	Zhengzhong
13	Blower	Shenghong
14	Ozone elimination device	Z-ZONE
15	Cooling, filter fan	HFM
16	Speed motor	JSCC
17	Speed motor	JSCC
18	UPS power supply	LADS
19	safety door switch	Matsushita
20	Tri-color warning light	APT
21	Photoelectric switch	Keyence
22	Photoelectric opening	Mach
23	Photoelectric switch (bump detection)	Matsushita
