Hard Pellet Capsule Filling Machine Full Automatic Grey Color
Price:
USD 20,000-5,0000
MOQ:
1 set
Delivery Time:
60days
Brand:
Z-Zone
Product Description

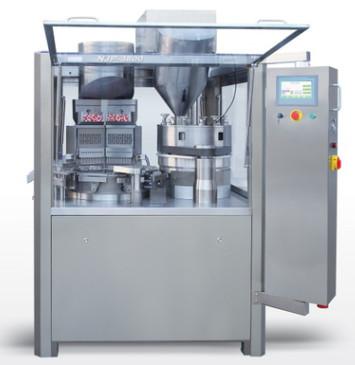

Full-Automatic Capsule Filling Machine
Machine specifications and technical parameters
| Equipment model, specification | NJP-3500Automatic hard capsule filling machine | |
|
Technical
Data |
Machine weight | 2400kg |
| Dimensions | 1130×1280×2060mm | |
| Motor Power | 9.55kw | |
| Power Supply | Three-phase four-wire AC 380V;50Hz | |
| Maximum production capacity | 3500 capsules/min | |
| Fillable capsule number | 00#～5# and Safety capsule A～E | |
| Capsule probability | ≥99.5％ | |
| Noise | ≤75dBA | |
| Load difference |
Above 300mg ≤±3％ (filling of granules from 40 to 80 mesh after granulation) |
|
| Compressed air | 0.06m3/min 0.3Mpa | |
| Water source requirement | The water ring vacuum pump is equipped with a water tank for recycling, and can also be connected to an external water source. | |
| Vacuum degree | -0.02～-0.06 MPa | |
| Water flow | 250L/h | |
| Inlet pipe inner diameter | 20mm | |
| Drain pipe inner diameter | 27mm | |
| Working temperature | 21℃±3℃ | |
| Working plant height requirement | Artificial feeding≥2.6m,Vacuum feeding≥2.8m | |
| Working environment relative humidity | 40～55％ | |
| Exhaust volume | 300m3/h | |
| Special function | The pellet filling device can be added; the powder collector function (filling part of the powder is recovered by another pipeline, and can be directly added to the hopper filling again without disinfection, sterilization) | |
| Control System | Variable frequency stepless speed regulation, PLC control | |
| Material | Parts in direct contact with capsules and pharmaceuticals are made of high quality stainless steel | |
NJP-3500Series Closed Full-Automatic Capsule Filling Machine Outfit
| Description | Specification/Model NO | From | Remark | |
|
Exactitude intermission graduator |
R140F061202L-S2-CN R180F101502L-S1-CN |
TAIWAN | 1 set for each | |
| main machine | R37DT90L4 | SEW | 1 | |
| vacuum pump | SZ-1.2 | Shang hai china | 1 | |
| cleaner | 3.0KW | zhejiang china | 1 | |
| Man-machine interface | 6AV6 648-0AC11-AX0 | WEINVIEW | 1 | |
| transducer | VFD037E43A | AirTAC | 1 | |
| PLC | DVP-24ES | AirTAC | 1 | |
| light axis | DKNΦ20-50 | Japan | 1 | |
| beeline axletree | SDE12Y | SEIKO | 26 | |
| beeline axletree | SDE20Y | SEIKO | 10 | |
| beeline axletree | SDE25Y | SEIKO | 12 | |
| beeline axletree | SDE50Y | SEIKO | 4 | |
| Roller | CF-8 | Japan | 10 | |
| Roller | CF-12 | Japan | 3 | |
| Roller | CF-16 | Japan | 2 | |
| Roller | CF-20K | Japan | 2 | |
| hot relay | 3UA50 | siemens, German | 3 | |
| relay | 3TB43 | siemens, German | 1 | |
| relay | 3TB41 | siemens, German | 3 | |
| breaker | 5SJ63-3P-32A | siemens, German | 1 | |
| breaker | 5SJ61-1P-10A | siemens, German | 1 | |
| sensor | LJC30A-H-Z/AB2 | Shanghai, China | 1 |
