Precision Ampoule Labeling Machine 2.5kw Plastic Bottle Conjoined
F-100 Plastic Bottle Conjoined Labeling Machine
The process
Bottle feeding or manual feeding on the line → whole row to the labeling machine conveyor line → third-phase online printing of labels → labeling → Missed and missed online detection and removal → Next process
Technical Specification
| No. | Name | Parameter |
| 1 | Speed | 0～100 board/min |
| 2 | Precision | ±1mm |
| 3 | Within the scope of the container | Various small specifications conjoined plastic bottles |
| 4 | Label volume size | Max Outside DiameterΦ400mm, Minimal lumen diameter Φ76mm |
| 5 | Overall dimensions | (L)2900*(W)948*(H)2048 |
| 6 | Weight | 300Kg |
| 7 | Total power | 2.5kw |
|
The non-drying label parameters (for reference) Label pitch: 2-4 mm ± 0.2 mm Below on the label and the bottom paper spacing below: 2 mm Bottom paper: need not less than 62 grams of white gration bottom paper, paper density and has very good internal strength and light transmittance, solid and not easily torn. Die cutting performance is wonderful. Basic gram: greater than 62g/㎡ thickness: greater than 55 microns Tensile strength: machine direction: 16kg/25mm Tear resistance: machine direction: 25g/sheet Through the brightness: 52% |
||
Characteristics

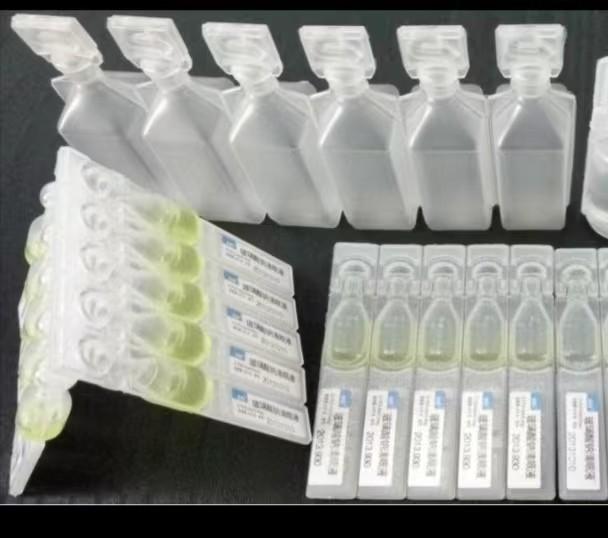

1. This equipment is specially used for flat labeling on conjoined plastic bottles of various specifications.
2. The labeling host head system is divided into parts for labeling, instant printing, labeling, and bottom paper recycling. The labeling part and the instant printing are designed with a separate buffer mechanism to ensure fast and stable label supply, and ensure Speed and accuracy.
3. Specially designed molds can be installed on the labeling conveyor line to facilitate product calibration and positioning and improve labeling stability.
4. Touch-type human-machine operation interface, when abnormality can be displayed on the man-machine interface and guide troubleshooting, the operation is simple, and anyone can use the device quickly.
5. Can be installed more emergency stop button, can place on production line equipped with emergency stop button to ensure safety and production operation smoothly.
6. Tag stripping length by servo motor, the detection photoelectric with PLC automatic calculations, do not need to adjust the label detection photoelectric position, any label length changes in man-machine interface, easy to use.
