1700kg Micro Hightop Mini Excavator CE EPA Hydraulic Pump Mini Digging Machine
1700kg Micro Hightop Mini Excavator CE EPA Approved Hydraulic Pump Mini Digging
HT17-2 Hightop mini excavator Description:
EPA/CE,ISO certificate Optional: Boom swing
Color can choose Red, Yellow, Blue, accept customized
We are a professional factory specializing in the production of small excavators with 0.8T, 0.9T, 1T, 1.5T, 1.6T, 1.8T, 2T, 2.2T,3T, 3.5T mini excavator
HT17-2 Hightop mini excavator Features:
1. Hydraulic pump is easy to maintain, long life
2. The retractable undercarriage lets you access and work in the tightest areas.
3. Rubber track no damage to cement, tile floor.
4. Dig-to-blade and dozer float features allow for easy clean up.
Hightop mini excavator Technical parameters:
| Model:HT17-2 | |
| Engine Emission Standard | Tier 5/ Stage V |
| Engine Make | Laidong/ Kubota |
| Engine Model | 385/ D722 |
| Engine Power /Rotation speed | 18.2kw/10.2kw14HP)2500rpm |
| Engine Number of cylinder | 3 |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe | 200mm |
| Number of track shoe per side | 38pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 3 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.03m³ |
| Swing speed | 9 rpm |
| Max. Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 18.2Mpa |
| Machine weight | 1650kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 2550mm*1100mm*2310mm |
| Wheel base | 1100mm |
| Chassis width | 1100mm |
| Axle base(Track length on ground) | 1300mm |
| Track width | 180mm |
| Min.Ground clearance | 380mm |
| Working Range | |
| Maximum Digging height | 27400mm |
| Maximum Dumping height | 2100mm |
| Maximum Digging depth | 2150mm |
| Maximum Vertical digging depth | 2320mm |
| Maximum Digging radius | 2400mm |
| Minimum swing radius | 1190mm |
| Maximum Lifting height of blade | 325mm |
| Maximum Cutting depth of blade | 175mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
Applications:
HT17-2 hightop mini excavator is widely used in works, such as small projects, gardens, farmland, municipal works, vegetable greenhouse. It is with compact design, and with low oil consumption,and easy to maintain.
Our Advantage:
1.We pride ourself on our considerated and professional sale service team.
2.Our company has stuffcient resources and capabilities in order to control the cost price advantage.
3.We have a professional production and R & D team, strictly control and quality design.
4.With ten years production experience and marketing, all of our products are greatly appreciated.

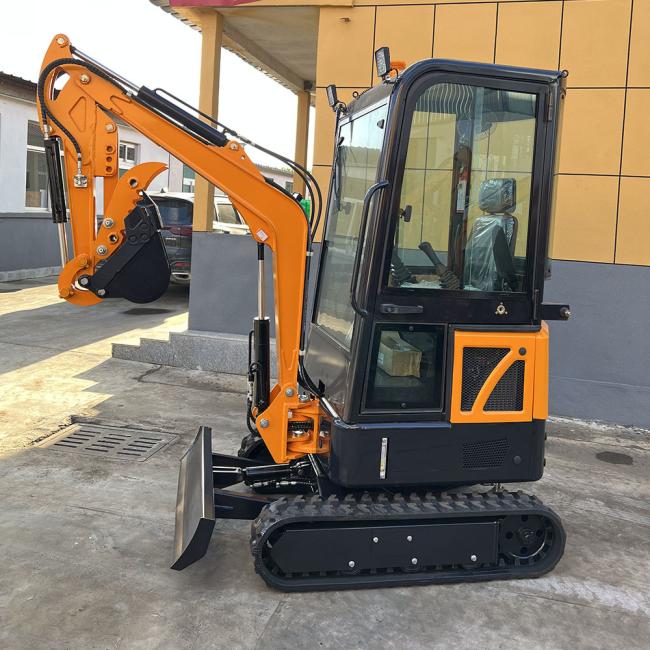

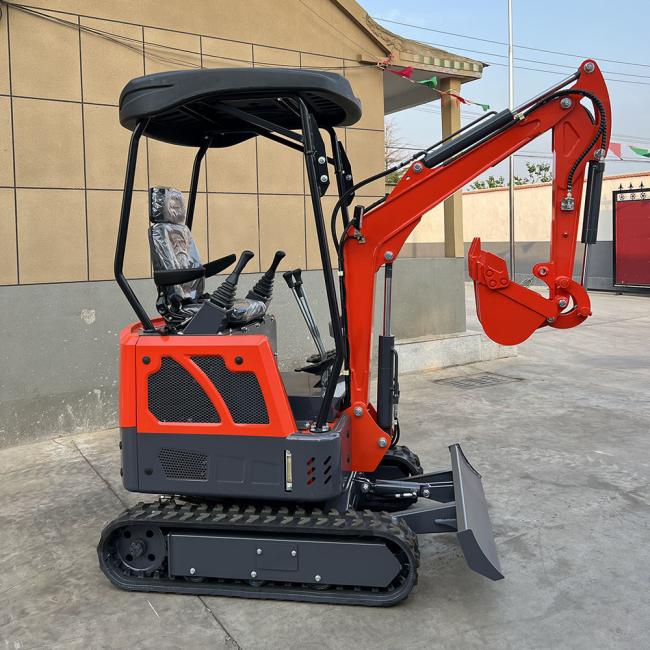

HT17-2 Hightop Mini Excavator Show Details:
