Galvanized Carbon Steel Forged Eye Bolt DIN 580 Eye Bolt M6 To M100
Galvanized Carbon Steel Material DIN 580 Eye Bolt
DIN 580 eye bolts are essential for rigging systems. Our company has produced this model for several years and all of them have required relative society certifications. Welcome to get in touch with us.
Details:

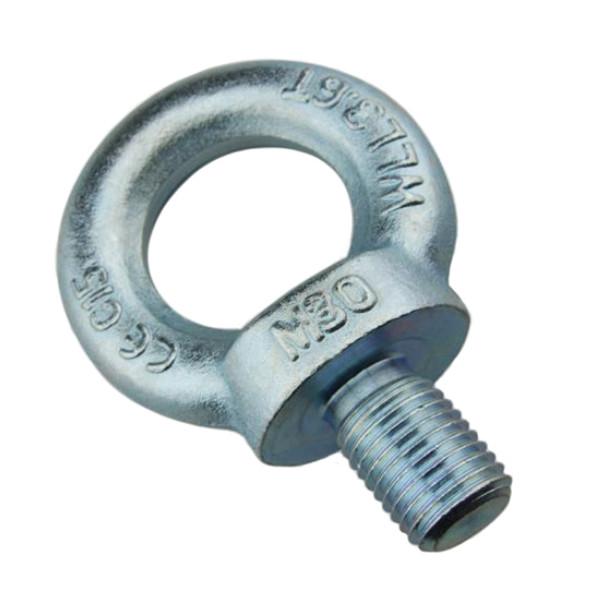

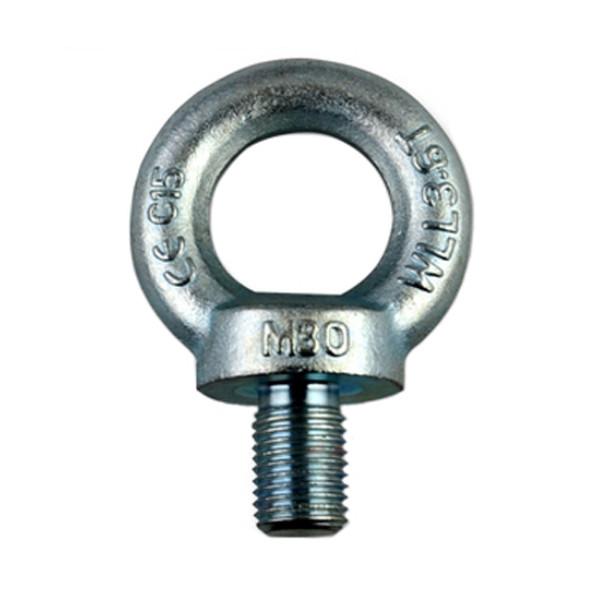

1. Model: DIN 580 Eye Bolt
2. Material: Carbon Steel, stainless steel, alloy steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized
5. Size: From M6 to M52
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

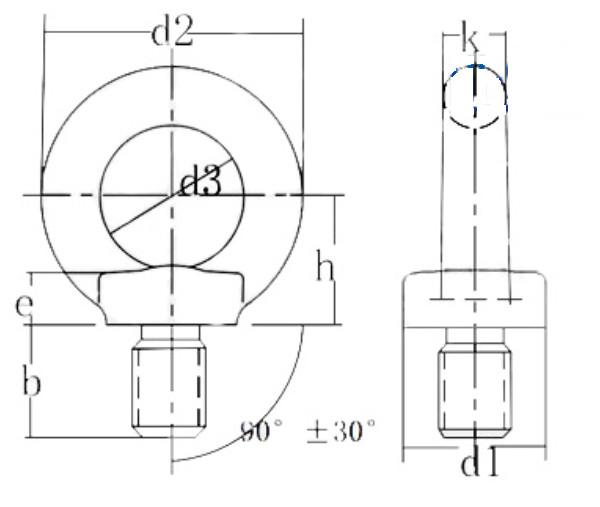

Specification:
| Size(d) | WLL(t) | WLL(t) | Dimensions | Weight(kg) | ||||||
| d1(mm) | d2(mm) | d3(mm) | b(mm) | e(mm) | h(mm) | k(mm) | ||||
| M6 | 0.07 | 0.05 | 17 | 28 | 16 | 13 | 6 | 17 | 6 | 5 |
| M8 | 0.14 | 0.095 | 20 | 36 | 20 | 15 | 6 | 18 | 8 | 6 |
| M10 | 0.23 | 0.17 | 25 | 45 | 25 | 18 | 8 | 22 | 10 | 11 |
| M12 | 0.34 | 0.24 | 30 | 54 | 30 | 22 | 10 | 26 | 12 | 18 |
| M14 | 0.49 | 0.34 | 35 | 63 | 35 | 28 | 12 | 30 | 14 | 28.5 |
| M16 | 0.7 | 0.5 | 35 | 63 | 35 | 28 | 12 | 30 | 14 | 28 |
| M20 | 1.2 | 0.83 | 40 | 72 | 40 | 30 | 12 | 35 | 16 | 45 |
| M22 | 1.5 | 1.05 | 45 | 81 | 45 | 35 | 14 | 40 | 18 | 67 |
| M24 | 1.8 | 1.27 | 50 | 90 | 50 | 38 | 16 | 45 | 20 | 87 |
| M27 | 2.5 | 1.65 | 50 | 90 | 50 | 38 | 18 | 45 | 20 | 88 |
| M30 | 3.6 | 2.6 | 65 | 108 | 60 | 45 | 18 | 55 | 24 | 166 |
| M33 | 4.3 | 3.2 | 65 | 108 | 60 | 45 | 22 | 55 | 24 | 172 |
| M36 | 5.1 | 3.7 | 75 | 126 | 70 | 55 | 22 | 65 | 28 | 265 |
| M39 | 6.1 | 4.3 | 75 | 126 | 70 | 55 | 26 | 65 | 28 | 280 |
| M42 | 7 | 5 | 85 | 144 | 80 | 65 | 30 | 75 | 32 | 403 |
| M45 | 8 | 5.5 | 85 | 144 | 80 | 65 | 30 | 75 | 32 | 425 |
| M48 | 8.6 | 6.1 | 100 | 166 | 90 | 70 | 35 | 85 | 38 | 638 |
| M52 | 9.9 | 7.3 | 100 | 166 | 90 | 70 | 35 | 85 | 38 | 660 |
Packing & Delivery
Company Profile
Huixing Industry (Qingdao) Co.,Ltd, established in 2000, is a professional factory for forging and casting. Our company is located in Environmental Protection Industrial Park, Jimo,Qingdao.
Our company's main products: eye bolts, eye nuts, rigging hardware, pole line hardware, forgings, castings. Products are sold to more than 20 countries and regions around the world.
Huixing provides high-quality products and perfect services to customers around the world.
