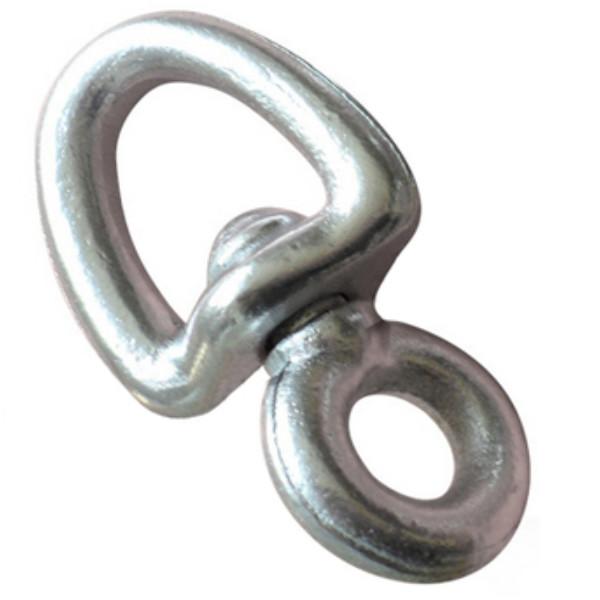

1.5T - 8T Stainless Steel Chain Swivel Stainless Steel Anchor Swivel 28mm
High Polished Stainless Steel Chain Swivel
Stainless steel chain swivel is made by high polished stainless steel. It can be used to fast and effectively connect the protection. They have excellent corrosion resistant and brightness surface. So it could be used in the place with higher requirements. And Special specification and marks can be made according to customers requirement.
Product details:
1. Item: Stainless steel chain swivel
2. Material: Stainless steel
3. Technology: drop forged
4. Surface: high polished
5. WLL:1.5T-8T
6. Breaking load: 4 times of working load
7. Usage: lifting, rigging
8. Size: 12mm-28mm
9. Special specifications and marks can be made according to customers requirement
Specification:
| Size | Φ mm | A mm | B mm | WLL(T) | Weight(kg) |
| 12 | 16 | 40 | 32 | 1.5 | 0.3 |
| 14 | 21 | 45 | 38 | 2.5 | 0.45 |
| 16 | 26 | 50 | 40 | 3 | 0.65 |
| 18 | 27 | 56 | 42 | 3.5 | 0.85 |
| 22 | 30 | 63 | 46 | 5 | 1.5 |
| 24 | 31 | 68 | 50 | 6 | 2 |
| 28 | 39 | 78 | 56 | 8 | 3 |
