Electric Galvanized DIN741 Forged Cable Clamps Cable Rope Clips Carbon Steel
Carbon Steel Electric Galvanized DIN741 Wire Rope Clip

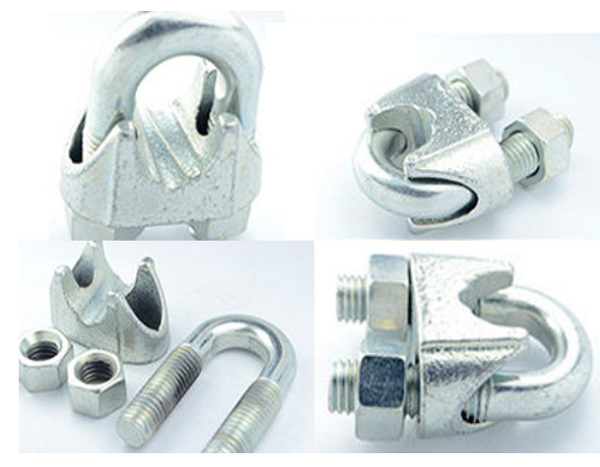

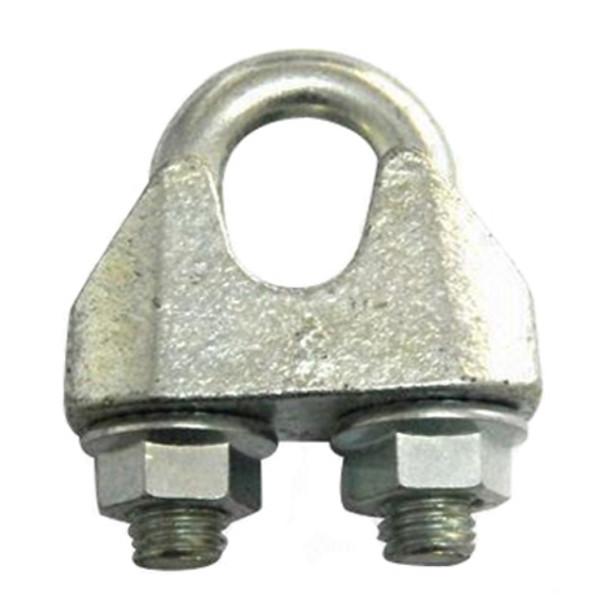

Electric Galvanized DIN741 Wire Rope Clip:
Electric galvanized DIN 741 wire rope clip is widely used in marine hardware. This product is made of carbon steel and the size is from 3mm to 40mm. And it is galvanized by an electric process. You can get the most competitive price from our company. And our professional sales team can also provide you the best service. Welcome to contact with us if you are interested in electric galvanized DIN741 wire rope clip.
Details:
1. Model NO.: DIN 741
2. Material: Carbon Steel
3. Usage: Wire Rope Clip, marine hardware,etc.
4. Surface Treatment: Electro galvanized, Hot dipped galvanized
5. Size: From 3mm to 40mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE
9. Notes: Special specifications and marks can be made according to customers requirements

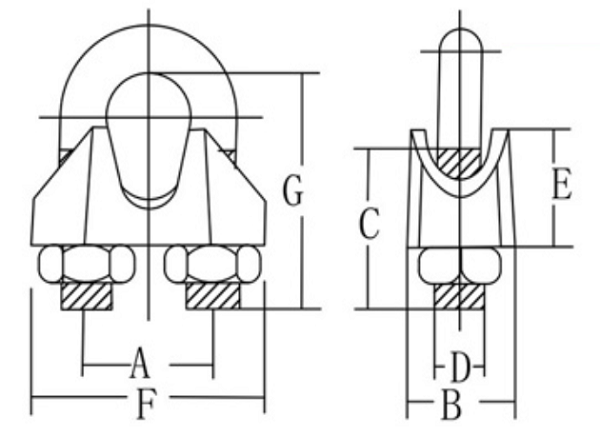

Specification:
| Size | A | B | C | D | E | F | G | 100/WT(kg) | |
| mm | in | ||||||||
| 3 | 1/8 | 9 | 10 | 12 | 4 | 10 | 21 | 16 | 1.4 |
| 5 | 3/16 | 11 | 11 | 13 | 5 | 10 | 23 | 19 | 1.5 |
| 6.5 | 1/4 | 13 | 12 | 15 | 5 | 11 | 26 | 23 | 2.1 |
| 8 | 5/16 | 16 | 14 | 19 | 6 | 15 | 30 | 28 | 4.1 |
| 10 | 3/8 | 19 | 18 | 22 | 8 | 17 | 34 | 34 | 6.8 |
| 11 | 7/16 | 20 | 19 | 22 | 8 | 18 | 36 | 36 | 7.2 |
| 13 | 1/2 | 24 | 23 | 30 | 10 | 21 | 42 | 45 | 13 |
| 14 | 9/16 | 25 | 23 | 30 | 10 | 22 | 44 | 47 | 13.5 |
| 16 | 5/8 | 29 | 26 | 33 | 12 | 26 | 50 | 51 | 21 |
| 19 | 3/4 | 32 | 29 | 38 | 12 | 30 | 54 | 63 | 28 |
| 22 | 7/8 | 37 | 33 | 44 | 14 | 34 | 61 | 71 | 40 |
| 26 | 1 | 41 | 35 | 45 | 14 | 37 | 65 | 81 | 44 |
| 30 | 11/8 | 48 | 37 | 50 | 16 | 43 | 74 | 94 | 66 |
| 34 | 11/4 | 52 | 42 | 55 | 16 | 50 | 80 | 104 | 85 |
| 40 | 11/2 | 58 | 45 | 60 | 16 | 55 | 88 | 124 | 104 |
