DIN5299 B Metal Straight Large Spring Snap Hooks Zinc Plated M12 X 140

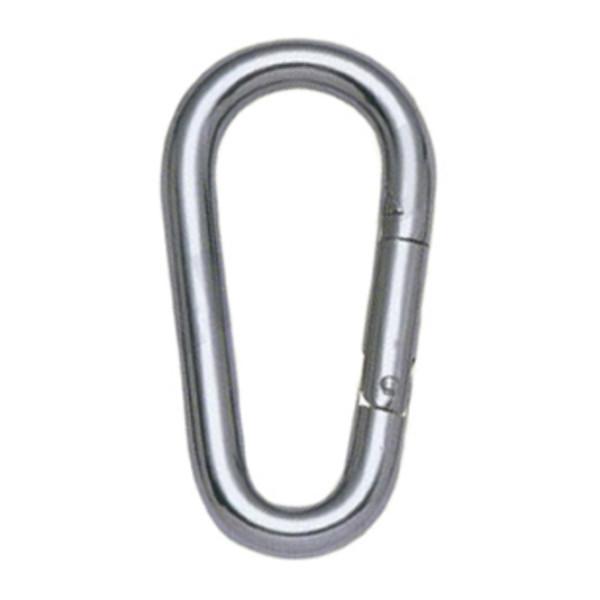

DIN5299 B Straight Snap Hook Zinc Plated
DIN 5299 egg type spring hook is made by high quality carbon steel or stainless steel. It has the advantages of small volume, light weight and high strength. And it plays an important role in improving the operational efficiency of hoisting equipment and expanding the scope of work of crane.
Product details:
1. Item: DIN 5299 egg type spring hook
2. Material: carbon steel, stainless steel
3. Technology: drop forged, casting
4. Surface: polished, zinc plated
5. Size: 5*50mm-12*140mm
6. Usage: lifting industry
7. Breaking load: 4 times of working load
8. Special specifications and marks can be made according to customers requirement

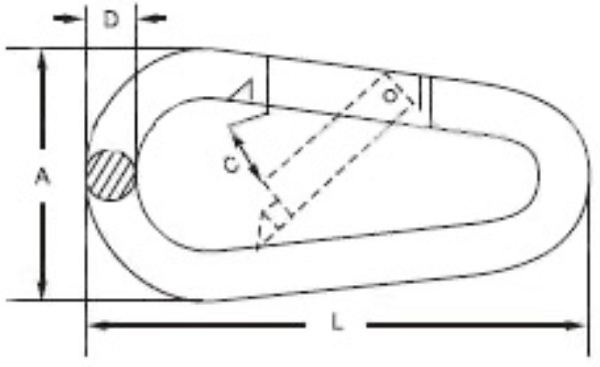

Specification:
| Size | A | C | D | L | N.W. |
| mm | mm | mm | mm | mm | kg/100pcs |
| 5*50 | 25 | 7 | 5 | 50 | 1.7 |
| 6*60 | 30 | 8 | 6 | 60 | 2.5 |
| 7*70 | 35 | 10 | 7 | 70 | 4.4 |
| 8*80 | 40 | 11 | 8 | 80 | 6.6 |
| 9*90 | 45 | 12 | 9 | 90 | 9.3 |
| 10*100 | 50 | 15 | 10 | 100 | 13 |
| 11*120 | 57 | 17 | 11 | 120 | 18.5 |
| 12*140 | 67 | 21 | 12 | 140 | 25 |
