Straight Spring Snap Hook Stainless Steel Snap Hook 5 X 50mm To 11 X 120mm

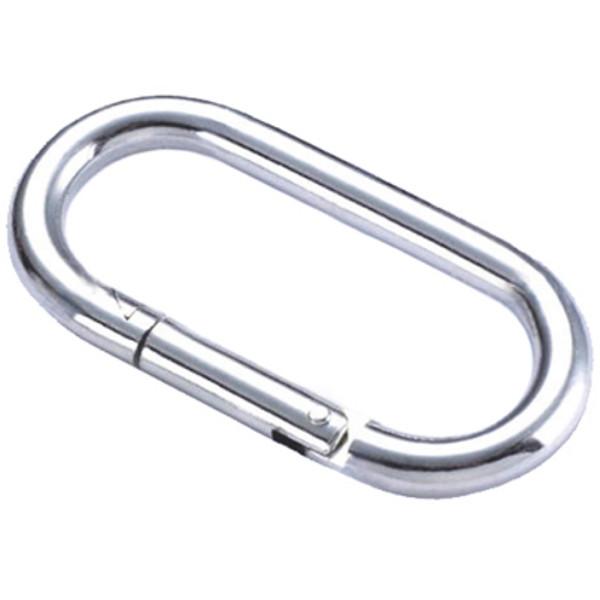

Straight Snap Hook
Straight snap hook can be used to fast and effectively connect the protection. And the most important and convinent usage of it is carrying goods. Every procedure of it are controlled strictly to make sure the quality of hooks before delivery. We never allow bad goods flow to the maket and ensure to supply our custumers the high quality and security products.
Product details:
1. Item: Straight snap hook
2. Material: high carbon steel, stainless steel
3. Technology: drop forged
4. Surface: hot dip galvanized, electro galvanized, zinc plated
5. Size: 5*50mm-11*120mm
6. Usage: lifting industry
7. Breaking load: 4 times of working load
8. Special specifications and marks can be made according to customers requirement

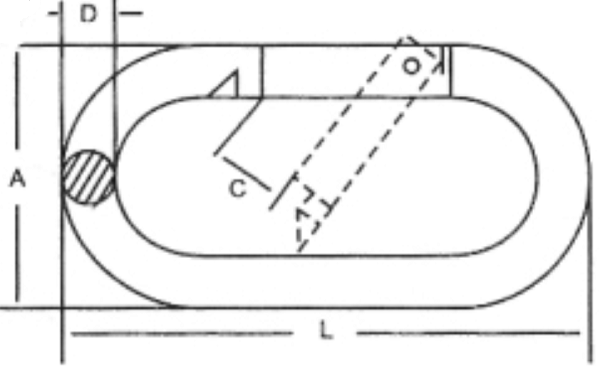

Specification:
| Size | A | C | D | L | W.L.L | N.W. |
| mm | mm | mm | mm | mm | lbs | kg/100pcs |
| 5*50 | 25 | 9 | 5 | 50 | 210 | 2.1 |
| 6*60 | 30 | 11 | 6 | 60 | 340 | 3.6 |
| 8*80 | 40 | 13 | 8 | 80 | 420 | 5.7 |
| 10*100 | 50 | 16 | 10 | 100 | 730 | 12.5 |
| 11*120 | 58 | 21 | 11 | 120 | 840 | 18.5 |
