200lbs to 8000lbs Zinc Plated Quick Link Oval Screw Link 3.5mm - 14mm

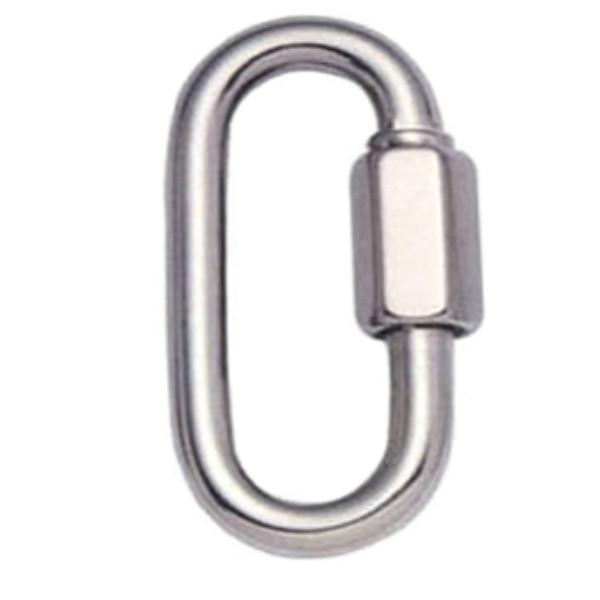

Zinc Plated Quick Link
Quick link can be used to fast and effectively connect the protection. And the most important and convinent usage of it is carrying goods. Quick links are mainly made by high alloy steel. Because of its solid structure, it could be used widely in camping equipment, equipments for fitness centers and playgrounds.
Product details:
1. Item: Quick link
2. Material: stainless steel, carbon steel
3. Technology: drop forged
4. Surface: hot dip galvanized, zinc plated, polished
5. Size: 3.5mm-14mm
6. Usage: lifting industry, security connection
7. Breaking load: 4 times of working load
8. Special specifications and marks can be made according to customers requirement

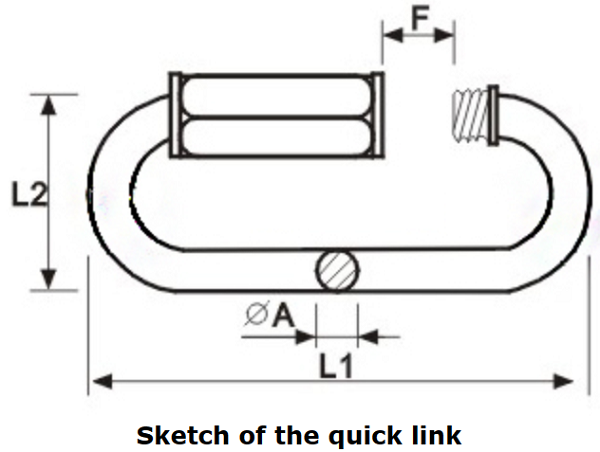

Specification:
| Size | A | L1 | L2 | F | W.L.L. |
| mm | mm | mm | mm | mm | lbs |
| 3.5 | 3.5 | 36.5 | 17 | 5 | 175 |
| 4 | 4 | 40 | 19.5 | 5.5 | 500 |
| 5 | 5 | 49 | 23 | 6.5 | 650 |
| 6 | 6 | 58 | 26.5 | 7.5 | 875 |
| 7 | 7 | 65 | 30.5 | 8.5 | 1200 |
| 8 | 8 | 75 | 33.5 | 10.5 | 1525 |
| 9 | 9 | 82 | 35 | 11.5 | 1975 |
| 10 | 10 | 90 | 40.5 | 12.5 | 2300 |
| 12 | 12 | 107 | 47.5 | 14.5 | 2500 |
| 14 | 14 | 125 | 54.5 | 17 | 2800 |
Packing & Delivery
