China M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook for sale

M32 - M105 Spring Snap Hook Color Painted 322 US Type Lifting Swivel Hook

Price Negotiable

Price: Negotiable

MOQ: 1 ton

Delivery Time: 60 days

Brand: LKY

Product Description

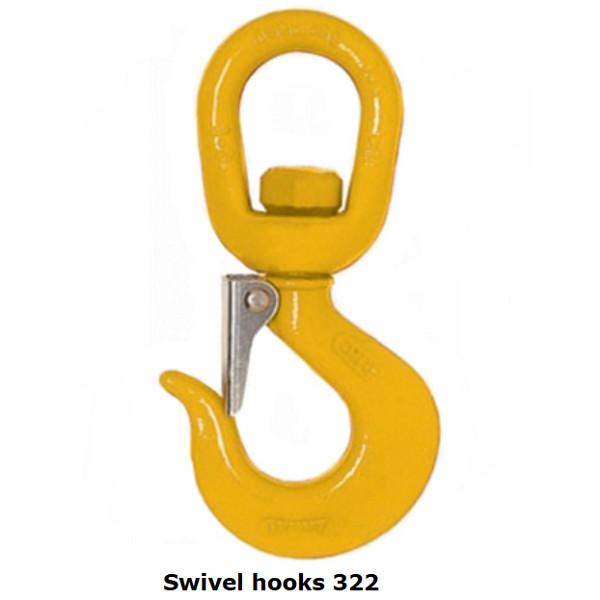

Color Painted 322 US Type Lifting Swivel Hook

Sweivel hooks 322 is more flexible and convenient than other solid hooks, bacause its lifting angel and rotation angle can be changed aibitratrily. Their work load limited is different according to their material quality. The maximum test load is 2 times of work load, and the minimum break load is 4 times of work load.

Product details:

1. Item: Swivel hooks 322

2. Type: US type

3. Material: alloy steel or carbon steel

4. Surface: zinc plated or color painted

5. Technology: drop forged

6. WLL: A322:1T-11T/ C322:0.75T-7.5T

7. Breaking load: 4 times of working load

8. Usage: lifting, rigging

9. Size: 0.75lbs-16.25lbs

Special specifications and marks can be made according to customers requirement

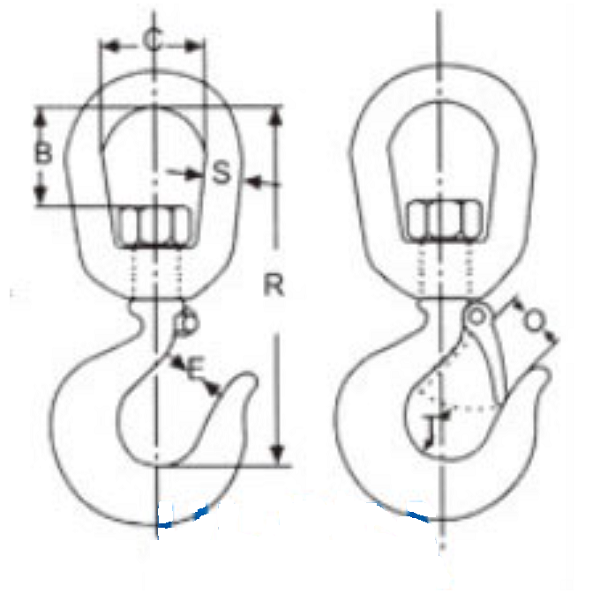

Specification:

W.L.L.(T)		Dimention(in)							Weight
322C	322A	B	C	E	R	S	T	O	lbs
0.75	1	0.94	1.25	1.31	4.47	0.38	0.81	0.87	0.75
1	1.5	1.31	1.5	1.03	5.28	0.5	0.81	0.97	1.25
1.5	2	1.63	1.75	0.06	6.02	0.63	0.84	1	2.25
2	3	1.56	1.75	1.22	6.38	0.63	1.19	1.13	2.57
3	4.5	1.75	2	1.5	7.41	0.75	1.37	1.34	4.75
5	7	2.31	2.5	1.88	9.59	1	1.78	1.69	10.29
7.5	11	2.37	2.75	2.25	11.13	1.13	2.13	2.06	16.25
