Drop Forged Spring Snap Hook Carbon Steel Eye Slip Hook H324

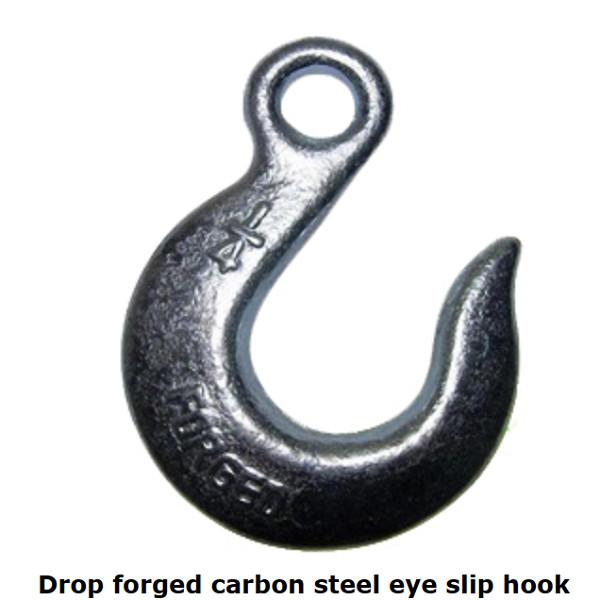

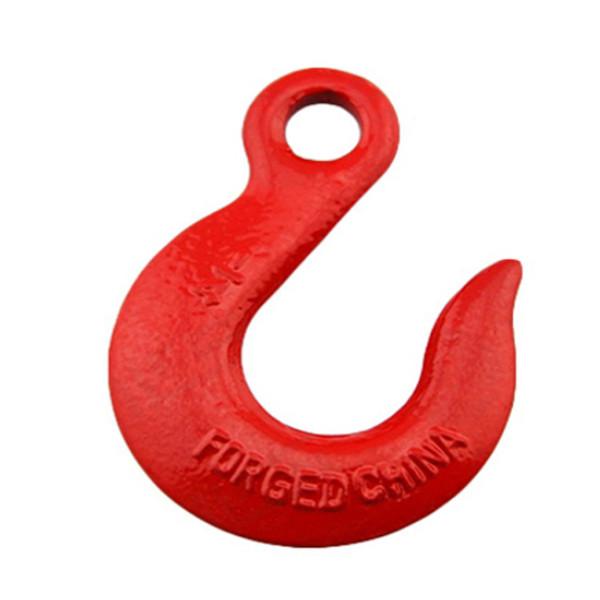

Drop Forged Carbon Steel Eye Slip Hook H324
Drop forged carbon steel eye slip hook H324 is made by high quality carbon steel with advanced international production process. The advanced technical design crafts and equipments are completely adopted. The essential working procedures are controlled completely by the computers. So it could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment.
Product details:
1. Item: Drop forged carbon steel eye slip hook H324
2. Type: US type, European type
3. Material: high carbon steel
4. Technology: drop forged
5. Surface: hot dip galvanized, color painted, zinc plated
6. WLL: 1950LBS-12500LBS
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size: 1/4”-3/4”
10.Special specifications and marks can be made according to customers requirement
Specification:
| Size(in) | W.L.L.(lbs) | B(in) | E(in) | R(in) | Weight(lbs) |
| 1/4' | 1950 | 0.5 | 0.94 | 2.56 | 0.4 |
| 5/16' | 2875 | 0.63 | 1.06 | 2.95 | 0.7 |
| 3/8' | 4000 | 0.72 | 1.31 | 3.36 | 1 |
| 7/16' | 5000 | 0.81 | 1.56 | 3.88 | 1.6 |
| 1/2' | 6500 | 0.94 | 1.69 | 4.28 | 2.4 |
| 5/8' | 9250 | 1.13 | 2 | 5.22 | 4 |
| 3/4' | 12500 | 1.38 | 2.13 | 5.8 | 6.5 |
