Alloy Steel G80 Hook Zinc Plated Clevis Slip Hook With Latch

Price Negotiable

Price: Negotiable

MOQ: 1 ton

Delivery Time: 60 days

Brand: LKY

Product Description

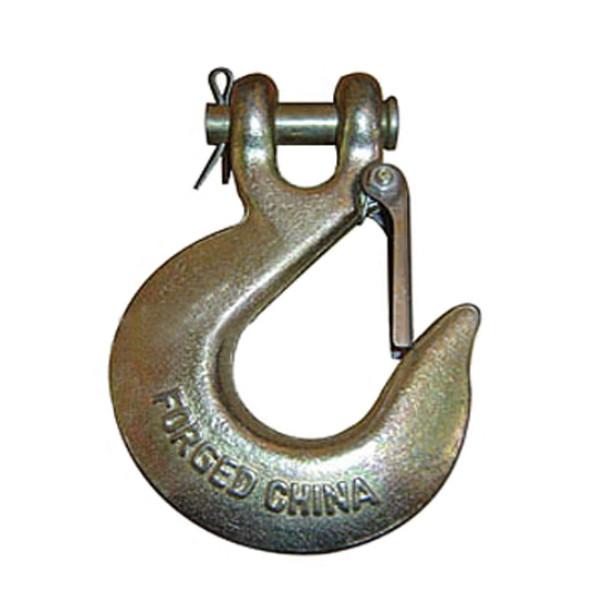

G80 High Alloy Steel Zinc Plated Clevis Slip Hook With Latch

Clevis slip hook with latch are simple to assemble with chains without any intermediate coupling-links. Its pulling force is very large, so it could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment.Besides that, every procedure are controlled strictly to make sure the quality of hooks before delivery.

Product details:

1. Item: Clevis slip hook with latch

2. Type: US type

3. Grade: 80

4. Material: high alloy steel

5. Technology: drop forged

6. Surface: hot dip galvanized, zinc plated or self color

7. WLL: 2750lbs-26500lbs

8. Breaking load: 4 times of working load

9. Usage: lifting, rigging

10. Size: 1/4”-1”

11. Special specifications and marks can be made according to customers requirement

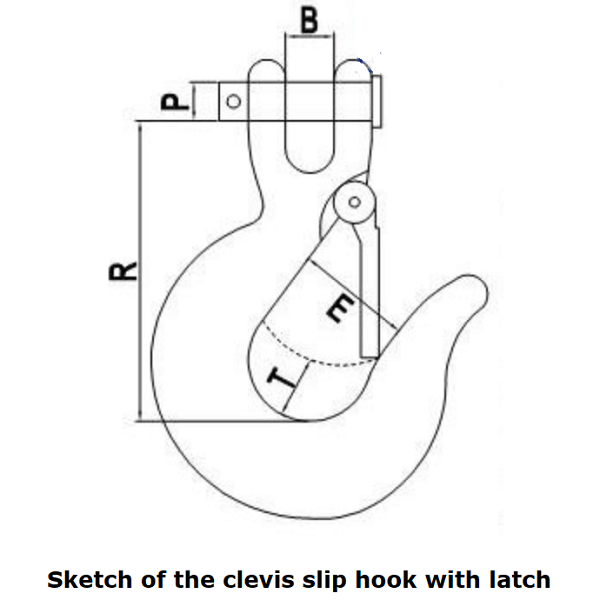

Specification:

Chain Size	W.L.L	Dimension(in)					Weight
in	lbs	B	E	P	R	T	lbs
1/4'	2750	0.44	0.79	0.38	2.56	0.79	0.52
5/16'	4300	0.5	0.93	0.44	2.87	0.79	0.77
3/8'	5250	0.59	1.14	0.47	3.25	1.02	1.23
7/16'	7000	0.66	1.18	0.56	3.7	1.06	2.1
1/2'	9000	0.75	1.42	0.63	4	1.38	2.85
5/8'	13500	0.91	1.65	0.75	4.94	1.69	5.18
3/4'	19250	0.31	1.81	1	6.09	1.81	10.45
1'	26500	0.38	1.98	1.14	7.4	2.5	13.65
