China Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability for sale

Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability

Price Negotiable

Price: Negotiable

MOQ: 1 ton

Delivery Time: 60 days

Brand: LKY

Product Description

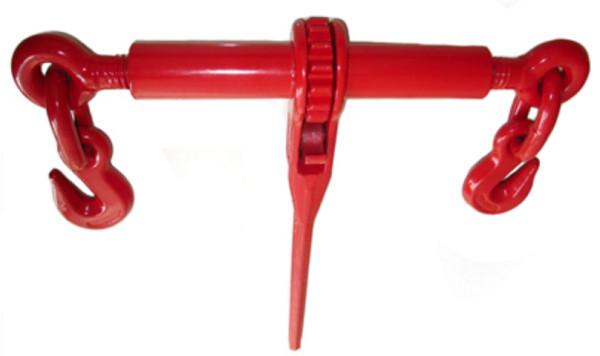

Power Coating US Type Standard Ratchet Type Load Binder

Load binder plays an important role in fixing and tensioning goods during transportation, loading and storage. After being fastened, it can avoid the object falling off and damaging. Beside that, it has advantages of safety, reliability, high working efficiency and easy to operate.

Product Details:

1. Model: US type standard ratchet type load binder

2. Material: Carbon steel, melleable iron

3. Standard: US type

4. Technology: Forged, casting

5. Surface: Power coating, Galvanized

6. SWL: 2200lbs-13000lbs

7. Weight: 3.52lbs-14.38lbs

8. Special specification and marks can be made according to order quantity

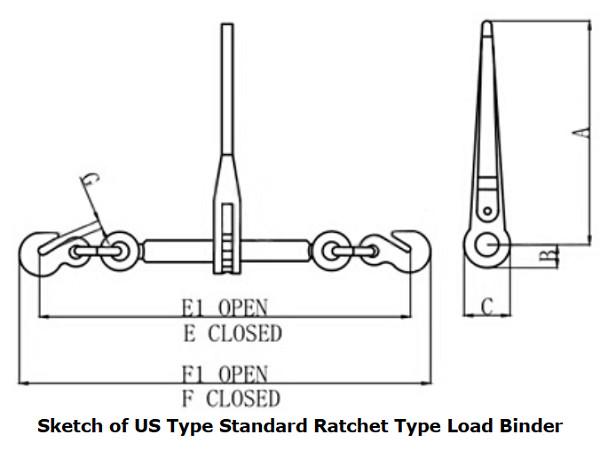

Specification:

Chain Size	WLL	B.L.	Weight	A	B	D	E	E1	F	G
in	lbs	lbs	lbs	mm	mm	mm	mm	mm	mm	mm
1/4-5/16	2200	7800	3.52	7.16	0.89	1.77	16.22	21.26	17.79	0.35
5/16-3/8	5400	19000	10.5	13.9	1.3	2.6	22.64	30.64	25.24	0.51
3/8-1/2	9200	33000	12.9	13.9	1.3	2.6	24.13	32.13	27.04	0.59
1/2-5/8	13000	46000	14.38	13.9	1.3	2.6	26.45	34.45	30.07	0.74
