Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T

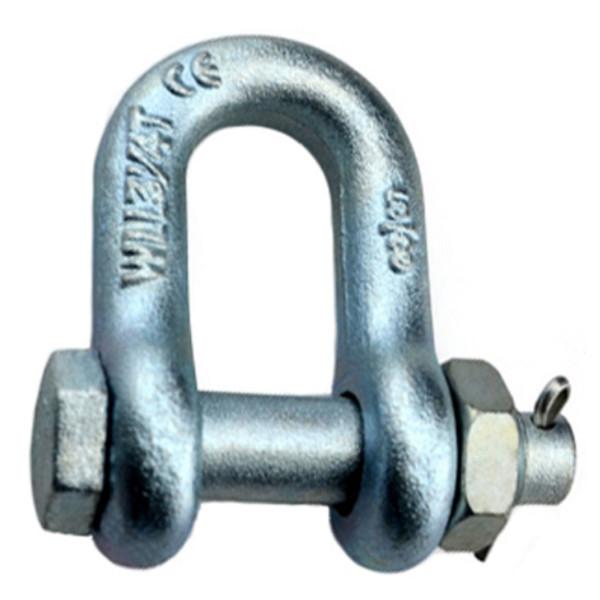

Electric galvanized Drop Forged Bolt Type Chain Shackle
Galvanized drop forged bolt type chain shackle also known as a D-shackle. D-shackles are narrow shackles shaped like a loop of chain, usually with a pin or threaded pin closure. The breaking load is 6 times of working load limited. Because of its galvanized surface, it can serve in many circumstances.
Details:
1. Model: Galvanized drop forged bolt type chain shackle
2. Material: Alloy steel
3. Usage: Marine hardware, electric power, machinery, metallurgy, building
4. Surface Treatment: Electric galvanized, hot dipped galvanized, painted
5. Size: From 1/4 inch to 3 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

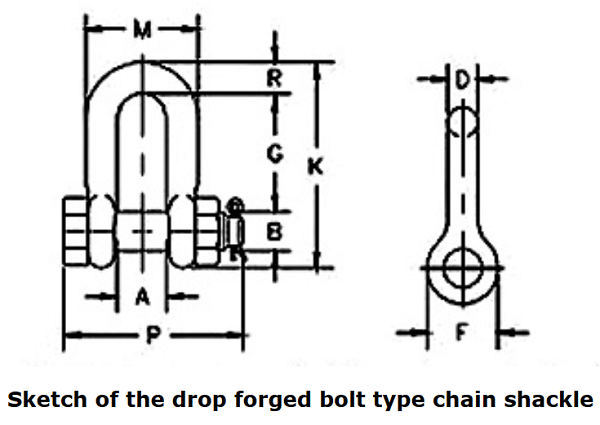

Specification:
| Nominal size | Weight each | Working load limit | Dimensions(mm) | ||||||||||
| in | kg | tons | A | B | C | D | E | F | G | H | L | M | P |
| 1/4 | 0.05 | 1/2 | 11.90 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 19.05 | 46.7 | 32.5 | 15.49 | 39.62 |
| 5/16 | 0.10 | 3/4 | 13.50 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 25.40 | 53.0 | 37.3 | 19.05 | 46.23 |
| 3/8 | 0.15 | 1 | 16.80 | 11.20 | 36.6 | 9.65 | 26.2 | 23.1 | 30.99 | 63.0 | 45.2 | 23.11 | 55.12 |
| 7/16 | 0.22 | 1-1/2 | 19.10 | 12.70 | 42.9 | 11.20 | 29.5 | 26.9 | 36.09 | 74.0 | 51.5 | 41.15 | 63.75 |
| 1/2 | 0.36 | 2 | 20.60 | 16.00 | 47.8 | 12.70 | 33.3 | 30.2 | 41.04 | 83.5 | 58.5 | 45.97 | 71.12 |
| 5/8 | 0.76 | 3-1/4 | 26.90 | 19.10 | 60.5 | 16.00 | 42.9 | 38.1 | 50.80 | 106.0 | 74.5 | 58.67 | 89.66 |
| 3/4 | 1.23 | 4-3/4 | 31.80 | 22.40 | 71.5 | 19.10 | 51.0 | 46.0 | 60.45 | 126.0 | 89.0 | 69.85 | 103.38 |
| 7/8 | 1.79 | 6-1/2 | 36.60 | 25.40 | 84.0 | 22.40 | 58.0 | 53.0 | 71.37 | 148.0 | 102.0 | 81.03 | 119.63 |
| 1 | 2.57 | 8-1/2 | 42.90 | 28.70 | 95.5 | 25.40 | 68.5 | 60.5 | 81.03 | 167.0 | 119.0 | 93.73 | 134.87 |
| 1-1/8 | 3.75 | 9-1/2 | 46.00 | 31.80 | 108.0 | 28.70 | 74.0 | 68.5 | 90.93 | 190.0 | 131.0 | 103.12 | 149.86 |
| 1-1/4 | 5.31 | 12 | 51.50 | 35.10 | 119.0 | 31.80 | 82.5 | 76.0 | 100.08 | 210.0 | 146.0 | 115.06 | 165.35 |
| 1-3/8 | 7.18 | 13-1/2 | 57.00 | 38.10 | 133.0 | 35.10 | 92.0 | 84.0 | 111.25 | 233.0 | 162.0 | 127.00 | 183.13 |
| 1-1/2 | 9.43 | 17 | 60.50 | 41.40 | 146.0 | 38.10 | 98.5 | 92.0 | 122.17 | 254.0 | 175.0 | 136.05 | 196.34 |
| 1-3/4 | 15.40 | 25 | 73.00 | 51.00 | 178.0 | 44.50 | 127.0 | 106.0 | 146.05 | 313.0 | 225.0 | 162.05 | 229.87 |
| 2 | 23.70 | 35 | 82.50 | 57.00 | 197.0 | 51.00 | 146.0 | 122.0 | 171.45 | 348.0 | 253.0 | 184.15 | 264.41 |
| 2-1/2 | 44.60 | 55 | 105.00 | 70.00 | 267.0 | 66.50 | 184.0 | 145.0 | 203.20 | 453.0 | 327.0 | 238.25 | 344.42 |
| 3 | 70.00 | 85 | 127.00 | 82.50 | 330.0 | 76.00 | 200.0 | 165.0 | 215.90 | 546.0 | 365.0 | 279.40 |
419.10 |
