1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle

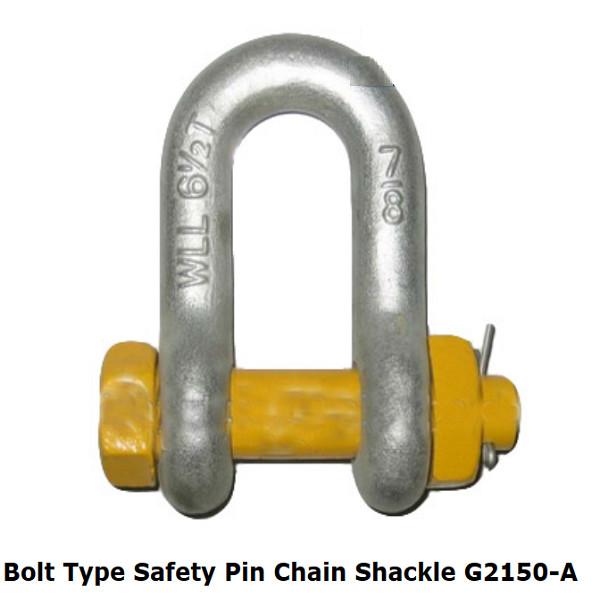

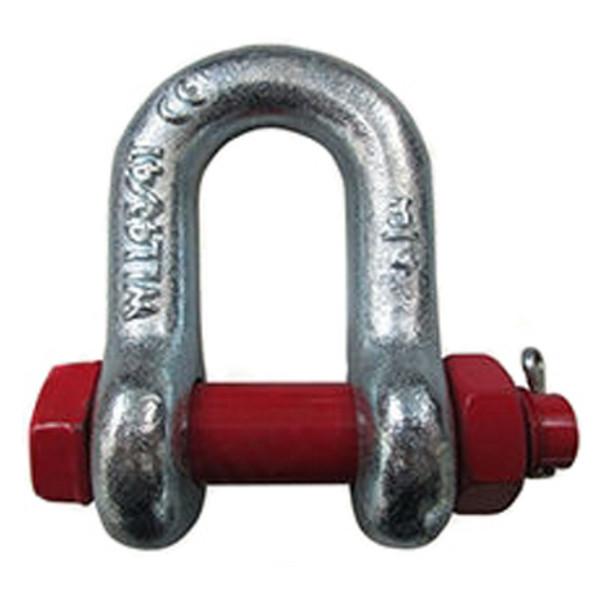

Galvanized Bolt Pin Chain Shackle
Bolt pin chain shackles are widely used in rigging systems. Our company has been producing this product for many years and most of material and sizes are available. Because of our cooperation with other excellent factories, the price is also very competitive. In addition, our professional sales team will offer you the best service. We are looking forward to be your business partner. Welcom to get in touch with us.
Details:
1. Model: Bolt pin chain shackle
2. Material: Alloy steel, stainless steel, carbon steel
3. Usage: Marine hardware, riggings, etc.
4. Surface Treatment: Electric galvanized, hot dipped galvanized, painted
5. Size: From 1/4 inch to 3 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
| Nominal size (in) | Working load limit (tons) | Dimensions (in) | Weight each (lbs) | |||||||||||
| A | B | C | D | E | F | G | K | L | M | N | G-210 | G-215 | ||
| S-210 | S-215 | |||||||||||||
| 1/4 | 1/2 | 0.47 | 0.31 | 0.25 | 0.25 | 0.97 | 0.61 | 0.88 | 1.59 | 0.19 | 1.38 | 1.34 | 0.11 | 0.1 |
| 5/16 | 3/4 | 0.53 | 0.38 | 0.31 | 0.31 | 1.16 | 0.75 | 1.03 | 1.91 | 0.22 | 1.66 | 1.59 | 0.17 | 0.18 |
| 3/8 | 1 | 0.66 | 0.44 | 0.38 | 0.38 | 1.41 | 0.91 | 1.25 | 2.3 | 0.25 | 2.03 | 1.86 | 0.24 | 0.25 |
| 7/16 | 11/2 | 0.75 | 0.5 | 0.44 | 0.44 | 1.63 | 1.06 | 1.44 | 2.66 | 0.31 | 2.38 | 2.13 | 0.4 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 0.5 | 0.5 | 1.81 | 1.19 | 1.63 | 3.03 | 0.38 | 2.69 | 2.38 | 0.59 | 0.5 |
| 5/8 | 31/4 | 1.06 | 0.75 | 0.62 | 0.63 | 2.31 | 1.5 | 2 | 3.75 | 0.44 | 3.34 | 2.91 | 1.21 | 1.21 |
| 3/4 | 43/4 | 1.25 | 0.88 | 0.81 | 0.75 | 2.75 | 1.81 | 2.38 | 4.53 | 0.5 | 3.97 | 3.44 | 2.25 | 2 |
| 7/8 | 61/2 | 1.44 | 1 | 0.97 | 0.88 | 3.19 | 2.09 | 2.81 | 5.33 | 0.5 | 4.5 | 3.81 | 3.16 | 3.28 |
| 1 | 81/2 | 1.69 | 1.13 | 1 | 1 | 3.69 | 2.38 | 3.19 | 5.94 | 0.56 | 5.07 | 4.53 | 4.75 | 4.75 |
| 11/8 | 91/2 | 1.81 | 1.25 | 1.25 | 1.13 | 4.06 | 2.69 | 3.58 | 6.78 | 0.63 | 5.59 | 5.13 | 6.75 | 6.3 |
| 11/4 | 12 | 2.03 | 1.38 | 1.38 | 1.25 | 4.53 | 3 | 3.94 | 7.5 | 0.69 | 6.16 | 5.5 | 9.06 | 9 |
| 13/8 | 131/2 | 2.25 | 1.5 | 1.5 | 1.38 | 5 | 3.31 | 4.38 | 8.28 | 0.75 | 6.84 | 6.13 | 11.63 | 12 |
| 11/2 | 17 | 2.38 | 1.62 | 1.62 | 1.5 | 5.38 | 3.62 | 4.81 | 9.06 | 0.81 | 7.35 | 6.5 | 15.95 | 16.15 |
| 13/4 | 25 | 2.88 | 2.12 | 2.12 | 1.75 | 6.38 | 4.19 | 5.75 | 10.97 | 1 | 9.08 | 7.75 | 26.75 | 29.96 |
| 2 | 35 | 3.25 | 2 | 2 | 2 | 7.25 | 4.81 | 6.75 | 12.28 | 1.22 | 10.34 | 8.75 | 42.31 | 43.25 |
| 21/2 | 55 | 4.13 | 2.62 | 2.62 | 2.62 | 9.38 | 5.69 | 8 | 14.84 | 1.38 | 13 | - | 71.75 | - |
