Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin

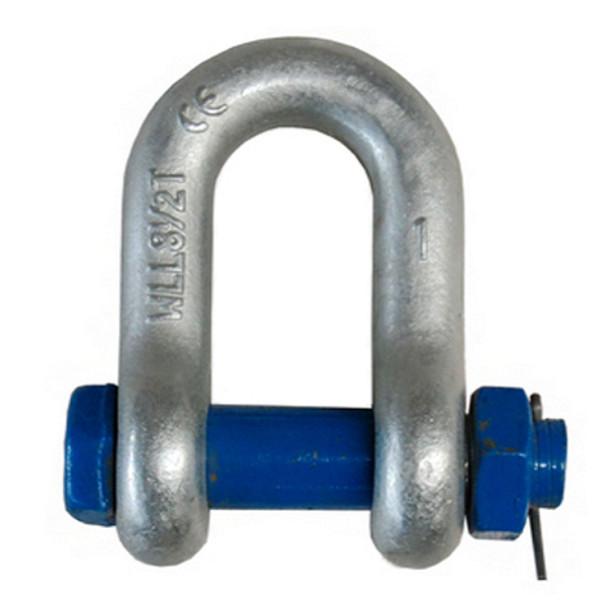

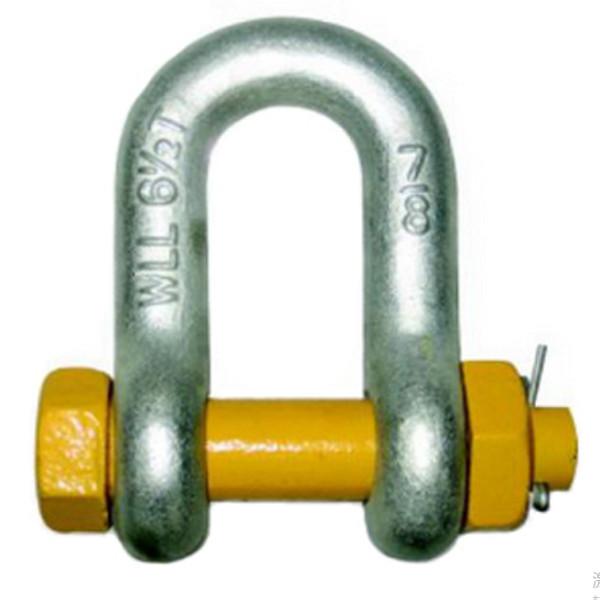

Galvanized G2150 Chain Shackle with Safety Bolt Pin
G2150 bolt type shackles with safety pin chain are practical in many rigging systems. We have our own factories and also co-opeate with other excellent factories, so the price is very competitive. Welcome to get in touch with us.
Details:
1. Model: G2150 Chain Shackle with Safety Bolt Pin
2. Material: Carbon steel, Alloy steel, Stainless steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: Different size available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

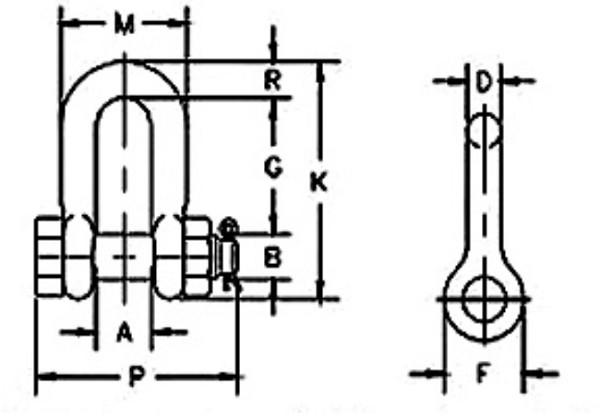

| Nominal size | Weight each(kg) | Working load limit | Dimensions(mm) | ||||||||||
| in | G2150 | tons | A | B | C | D | E | F | G | H | L | M | P |
| 3/16 | 0.03 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | - | 37.3 | 24.9 | - | 32.77 |
| 1/4 | 0.05 | 1/2 | 11.90 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 19.05 | 46.7 | 32.5 | 15.49 | 39.62 |
| 5/16 | 0.10 | 3/4 | 13.50 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 25.40 | 53.0 | 37.3 | 19.05 | 46.23 |
| 3/8 | 0.15 | 1 | 16.80 | 11.20 | 36.6 | 9.65 | 26.2 | 23.1 | 30.99 | 63.0 | 45.2 | 23.11 | 55.12 |
| 7/16 | 0.22 | 1-1/2 | 19.10 | 12.70 | 42.9 | 11.20 | 29.5 | 26.9 | 36.09 | 74.0 | 51.5 | 41.15 | 63.75 |
| 1/2 | 0.36 | 2 | 20.60 | 16.00 | 47.8 | 12.70 | 33.3 | 30.2 | 41.04 | 83.5 | 58.5 | 45.97 | 71.12 |
| 5/8 | 0.76 | 3-1/4 | 26.90 | 19.10 | 60.5 | 16.00 | 42.9 | 38.1 | 50.80 | 106.0 | 74.5 | 58.67 | 89.66 |
| 3/4 | 1.23 | 4-3/4 | 31.80 | 22.40 | 71.5 | 19.10 | 51.0 | 46.0 | 60.45 | 126.0 | 89.0 | 69.85 | 103.38 |
| 7/8 | 1.79 | 6-1/2 | 36.60 | 25.40 | 84.0 | 22.40 | 58.0 | 53.0 | 71.37 | 148.0 | 102.0 | 81.03 | 119.63 |
| 1 | 2.57 | 8-1/2 | 42.90 | 28.70 | 95.5 | 25.40 | 68.5 | 60.5 | 81.03 | 167.0 | 119.0 | 93.73 | 134.87 |
| 1-1/8 | 3.75 | 9-1/2 | 46.00 | 31.80 | 108.0 | 28.70 | 74.0 | 68.5 | 90.93 | 190.0 | 131.0 | 103.12 | 149.86 |
| 1-1/4 | 5.31 | 12 | 51.50 | 35.10 | 119.0 | 31.80 | 82.5 | 76.0 | 100.08 | 210.0 | 146.0 | 115.06 | 165.35 |
| 1-3/8 | 7.18 | 13-1/2 | 57.00 | 38.10 | 133.0 | 35.10 | 92.0 | 84.0 | 111.25 | 233.0 | 162.0 | 127.00 | 183.13 |
| 1-1/2 | 9.43 | 17 | 60.50 | 41.40 | 146.0 | 38.10 | 98.5 | 92.0 | 122.17 | 254.0 | 175.0 | 136.05 | 196.34 |
| 1-3/4 | 15.40 | 25 | 73.00 | 51.00 | 178.0 | 44.50 | 127.0 | 106.0 | 146.05 | 313.0 | 225.0 | 162.05 | 229.87 |
| 2 | 23.70 | 35 | 82.50 | 57.00 | 197.0 | 51.00 | 146.0 | 122.0 | 171.45 | 348.0 | 253.0 | 184.15 | 264.41 |
| 2-1/2 | 44.60 | 55 | 105.00 | 70.00 | 267.0 | 66.50 | 184.0 | 145.0 | 203.20 | 453.0 | 327.0 | 238.25 | 344.42 |
| 3 | 70.00 | 85 | 127.00 | 82.50 | 330.0 | 76.00 | 200.0 | 165.0 | 215.90 | 546.0 | 365.0 | 279.40 | 419.10 |
| 3-1/2 | 120.00 | 120 | 133.00 | 95.50 | 372.0 | 92.00 | 229.0 | 203.0 | - | 626.0 | 419.0 | - | 482.60 |
| 4 | 153.00 | 150 | 140.00 | 108.00 | 368.0 | 104.00 | 254.0 | 229.0 | - | 653.0 | 468.0 | - | 501.65 |
