4mm To 22mm Long Dee Shackle Stainless Steel D Shackle ISO

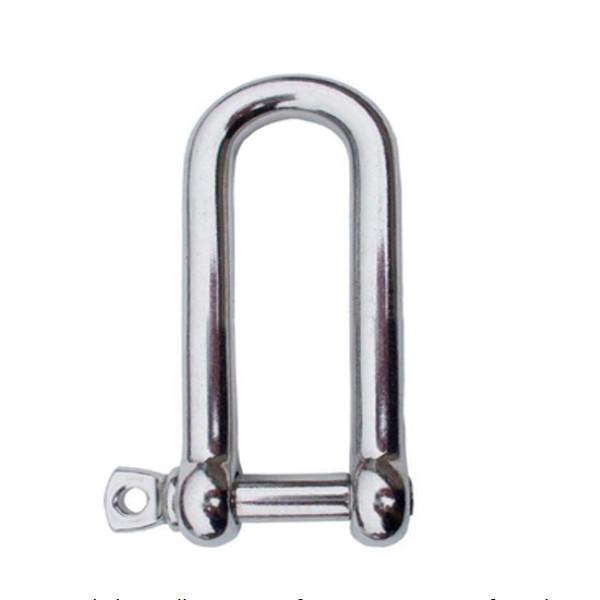

Stainless Long Dee Shackle
Long dee shackles are the primary connecting link in all manner of rigging systems, from boats and ships to industrial crane rigging, as they allow different rigging subsets to be connected or disconnected quickly. Our company has been speicialized in producing this product for many years. And the price is very competitive. Welcome to contact with us.
Details:
1. Model: Long Dee Shackle
2. Material: Stainless steel
3. Usage: Marine hardware, electric power, machinery
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: From 4mm to 22mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements

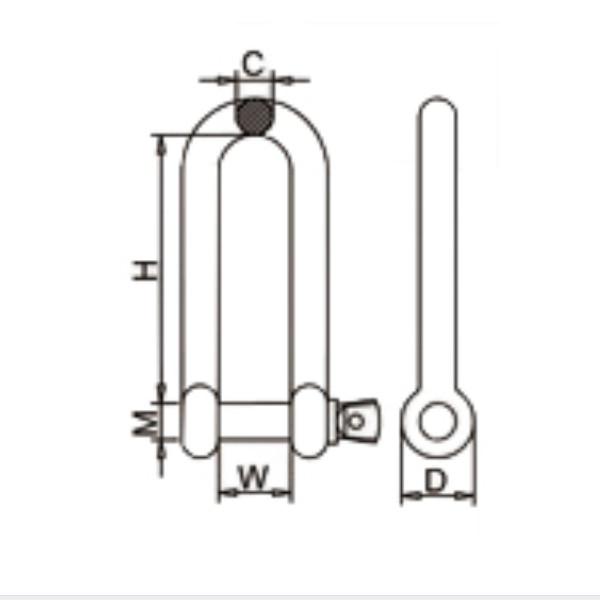

Specification:
| Size(C) | M | D | W | H | WLL |
| mm | mm | mm | mm | mm | kg |
| 4 | 4 | 8 | 8 | 28 | 150 |
| 5 | 5 | 10 | 10 | 35 | 240 |
| 6 | 6 | 12 | 12 | 42 | 340 |
| 8 | 8 | 16 | 16 | 56 | 600 |
| 10 | 10 | 20 | 20 | 70 | 750 |
| 12 | 12 | 24 | 24 | 84 | 1000 |
| 14 | 14 | 28 | 28 | 98 | 1350 |
| 16 | 16 | 32 | 32 | 112 | 2000 |
| 18 | 18 | 36 | 36 | 126 | 2750 |
| 20 | 20 | 40 | 40 | 140 | 3000 |
| 22 | 22 | 44 | 44 | 154 | 3600 |
