M50 Electric Screw Pin Anchor Shackle European Type Galvanized Anchor Shackle

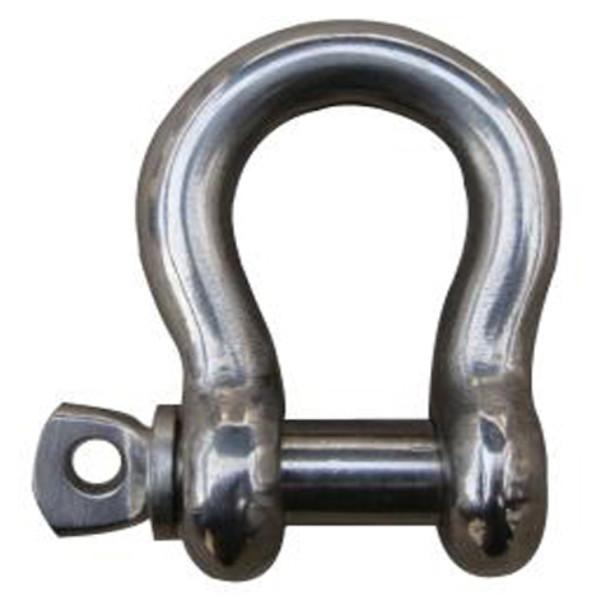

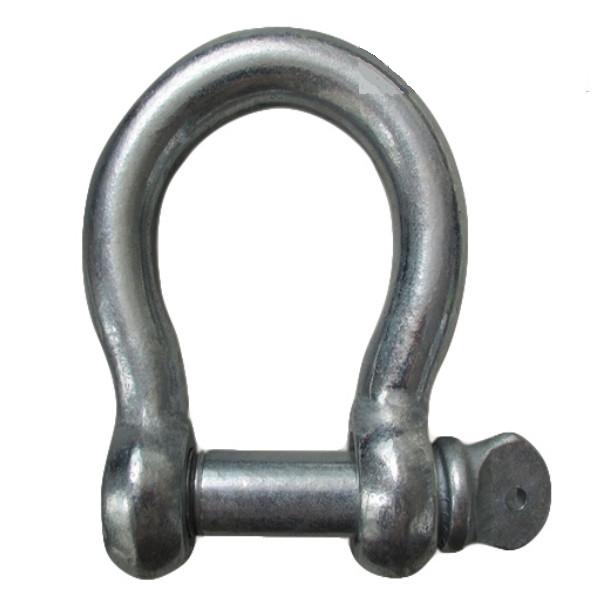

Electric galvanized European Type Bow Shackle
European type bow shackles are very essential for marine equipment. Our company has a lot of experiences in producing this product. All sizes are available and the price is competitive. Welcome to contact with us.
Details:
1. Model: European Type Bow Shackle
2. Material: Carbon steel, Alloy steel
3. Usage: Marine hardware
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements

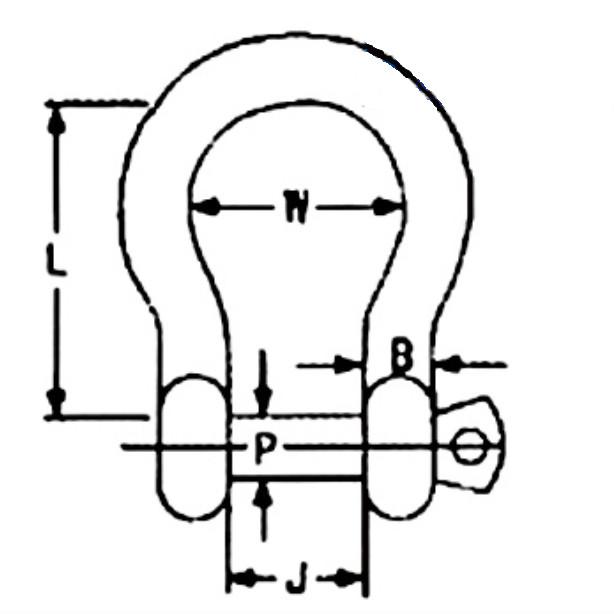

Specification:
| Size | Weight per 100 PCS | WLL |
| mm | kg | kg |
| 5 | 1.85 | 80 |
| 6 | 3.3 | 100 |
| 8 | 6.8 | 200 |
| 10 | 12.6 | 320 |
| 12 | 23 | 520 |
| 16 | 48.5 | 800 |
| 20 | 78 | 1100 |
| 22 | 126 | 1500 |
| 25 | 194 | 2100 |
| 28 | 291 | 3000 |
| 32 | 417 | 3500 |
| 38 | 655 | 5000 |
| 45 | 1213 | 7000 |
| 50 | 1698 | 8000 |
