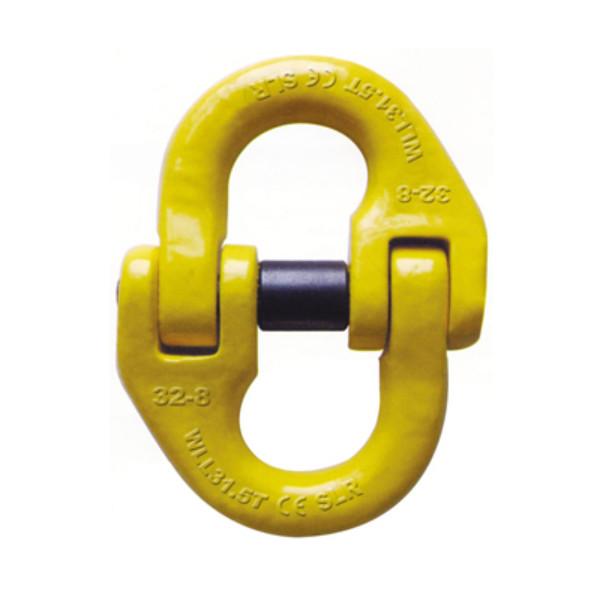

Power Plastified Alloy Steel Marine Rigging Hardware Chain Connecting Link 7.4mm - 40mm
Power Plastified Alloy Steel Rigging Hardware Connecting Link
Rigging hardware connecting link can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes. The surface of them are smooth to avoid snagging. And the heavy duty retaining bush with its well protected square-sectioned spring ensures high reliability andsafety. Because of its solid structure, it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.
Product Details:
1. Item: Rigging hardware connectint link
2. Grade: G80
3. Type: European type
4. Material: Alloy steel
5. Technology: Drop forged
6. Surface: Hot dip galvanized, Color painted
7. WLL: 1.4T-39.3T
8. Braking load is 4 times of working load limited
9. Usage: Lifting accessories
10. Size: 7.4mm-40mm
11. Special specifications and marks can be made according to customers requirement

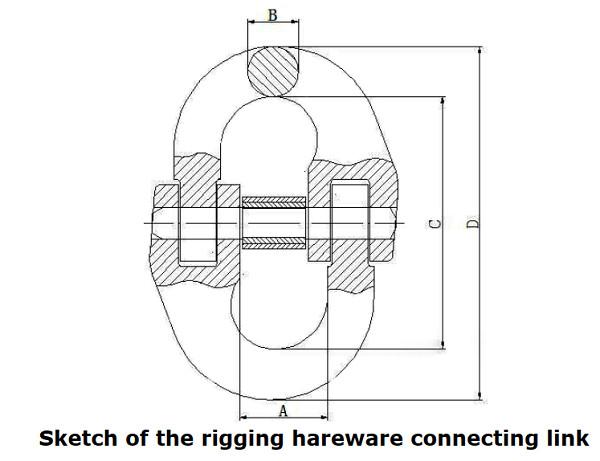

Specification:
| WLL(T) | Weight(kg) | B.L(T) | A(mm) | B(mm) | C(mm) | D(mm) |
| 1.4 | 0.1 | 5.6 | 14 | 7.6 | 44.5 | 60 |
| 2.5 | 0.22 | 10 | 18.5 | 10 | 61.5 | 84.5 |
| 4 | 0.45 | 16 | 23 | 12.6 | 72 | 97.2 |
| 6.7 | 1.15 | 26.8 | 27.5 | 16.8 | 89 | 127 |
| 10 | 1.75 | 40 | 33.5 | 21 | 103 | 145 |
| 16 | 2.7 | 64 | 42 | 24.5 | 116 | 175 |
| 19 | 4.02 | 76 | 48 | 27 | 135 | 193 |
| 26.5 | 5.1 | 106 | 61 | 32 | 164 | 228 |
| 39.3 | 8.5 | 157.2 | 80 | 40 | 194 | 274 |
