7mm - 32mm Stainless Steel Chain Connecting Links Chain Coupling Link

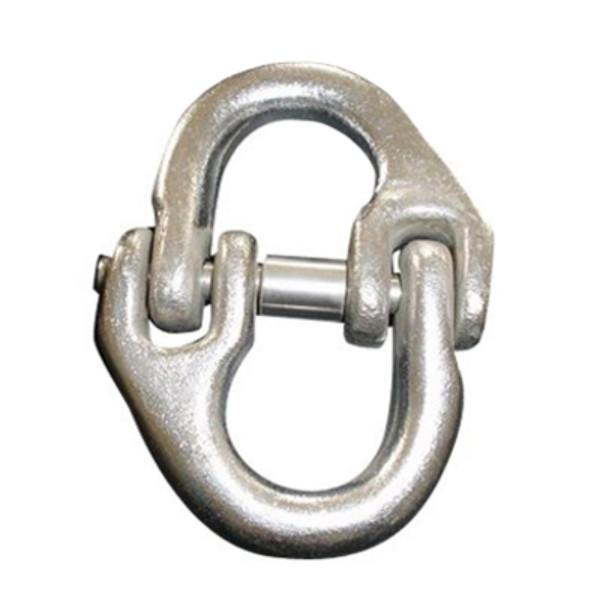

High Polished Stainless Steel Connecting Link
High polished stainless steel connecting link is made by high polished stainless steeel with advanced international production process. It can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes. Because of its solid structure, it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.
Product Details:
1. Item: High polished stainless steel connecting link
2. Grade: G80
3. Type: European type
4. Material: stainless steel
5. Technology: Drop forged
6. Surface: High polished, Color painted
7. WLL: 4300lbs-90400lbs
8. Braking load is 4 times of working load limited
9. Usage: Lifting accessories
10. Size: 7mm-32mm
11. Special specifications and marks can be made according to customers requirement
Specification:

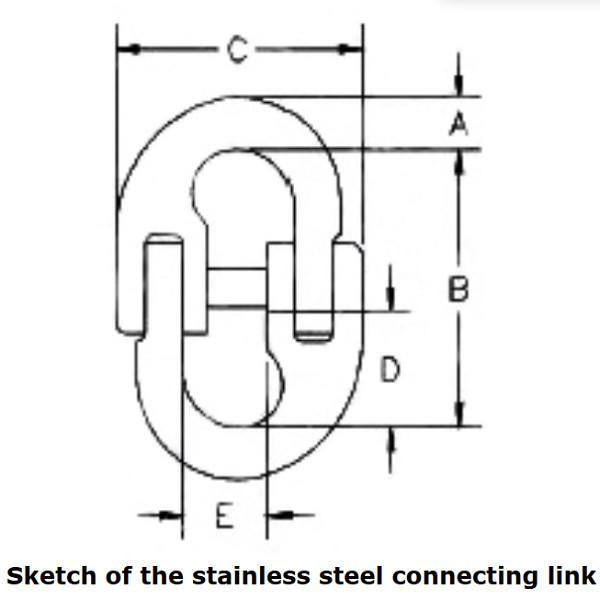

| Size(mm) | Weight(lbs) | WLL(lbs) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 7 | 0.28 | 4300 | 0.36 | 1.88 | 1.85 | 0.78 | 0.63 |
| 8 | 0.33 | 5700 | 0.36 | 2.18 | 1.97 | 0.91 | 0.66 |
| 10 | 0.73 | 8800 | 0.45 | 2.53 | 2.5 | 1.03 | 0.85 |
| 13 | 1.67 | 15000 | 0.64 | 3.44 | 3.22 | 1.44 | 1.09 |
| 16 | 2.86 | 22600 | 0.75 | 4.13 | 3.78 | 1.73 | 1.38 |
| 20 | 5 | 35300 | 0.93 | 4.92 | 4.62 | 2.03 | 1.62 |
| 22 | 7.5 | 42700 | 1.06 | 5.46 | 5.46 | 2.2 | 2 |
| 25 | 11.03 | 59700 | 1.22 | 5.98 | 5.98 | 2.44 | 2.25 |
| 32 | 20.38 | 90400 | 1.5 | 7.43 | 7.43 | 3.07 | 2.56 |
