2.1T - 7.48T Drop Forged Master Link Galvanized Twin Clevis Link ISO

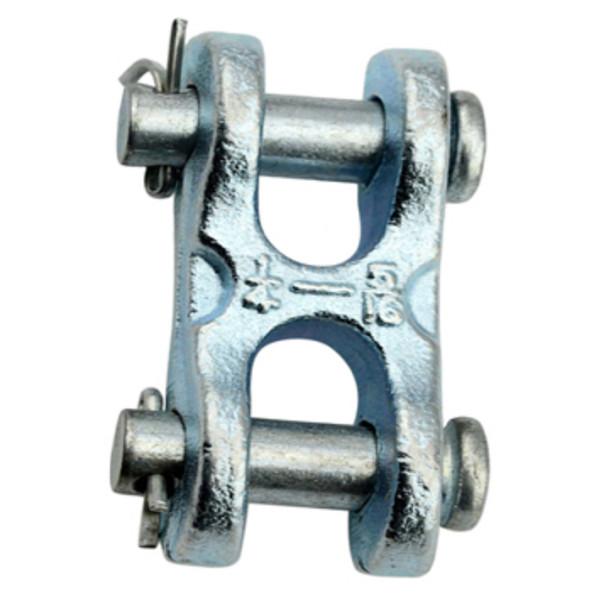

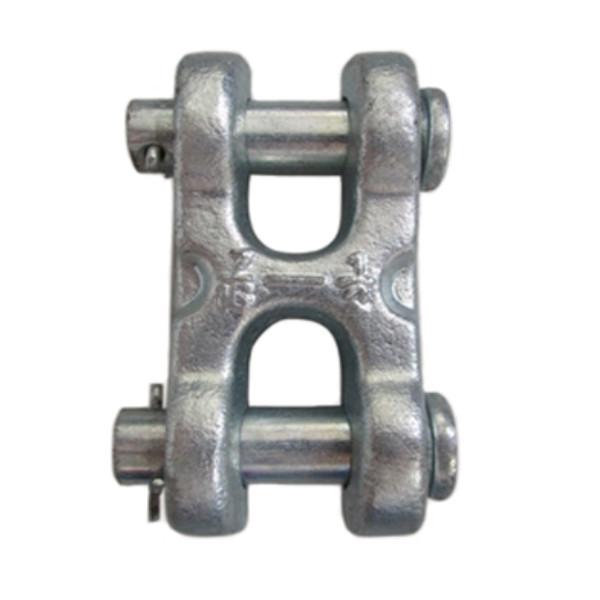

Drop Forged Galvanized Twin Clevis Link
Twin clevis link is made by high quality alloy steel or carbon steel with hot dip galvanizing on the surface. In order to assure the quality of products and to be responsible to the clients, the company strictly carries out the Quality/Environment management system document. All the procedures from raw material purchase to delivery will be strictly examed.
Product Details:
1. Item:Twin clevis link
2. Grade: G80
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, Color painted
6. WLL: 2.1T-7.48T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 9mm-18mm
10. Special specifications and marks can be made according to customers requirement
Specification:
| WLL(T) | Weight(kg) | B.L(T) | A(mm) | B(mm) | K(mm) | L(mm) |
| 2.1 | 0.21 | 8.4 | 10 | 28 | 32 | 65 |
| 3 | 0.35 | 12 | 12 | 34 | 40.5 | 78 |
| 5.1 | 0.76 | 20.4 | 15 | 45 | 54 | 100.5 |
| 7.48 | 1.05 | 29.9 | 20 | 56 | 66 |
125.5 |
