2.5T - 8T G80 Forged D Ring Color Painted Alloy Steel For Lifting Accessories

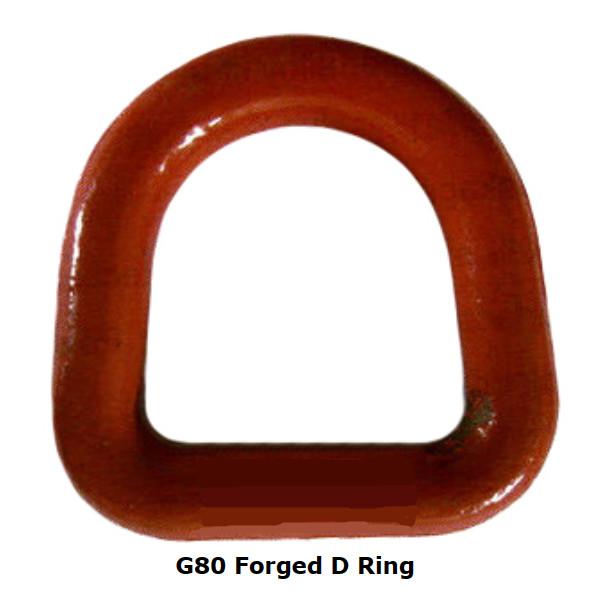

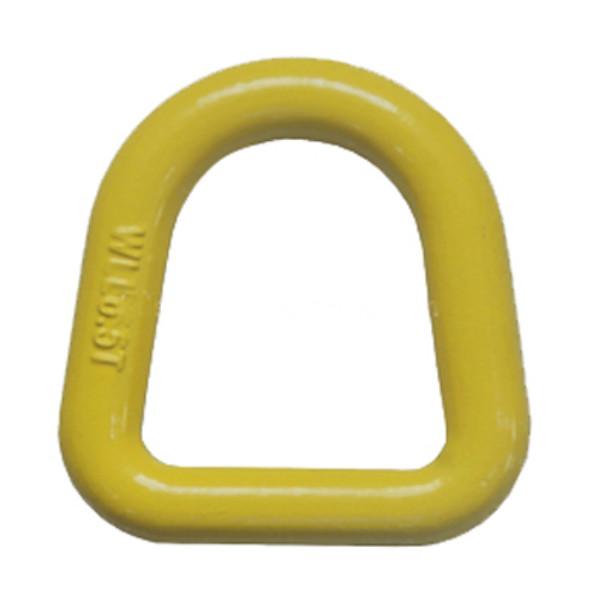

Color Painted Alloy Steel G80 Forged D Ring
G80 forged D ring has the advantages of small volume, light weight and high strength. It is made by high quality alloy steel with advanced international prodection process. The most outstanding advantage of it is the solid and safety structure. And all the samples chosen from the finished products have past the international standard.
Product Details:
1. Item: G80 forged D ring
2. Grade: G80
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, Color painted
6. WLL: 2.5T-8T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 14mm-22mm
10. Special specifications and marks can be made according to customers requirement

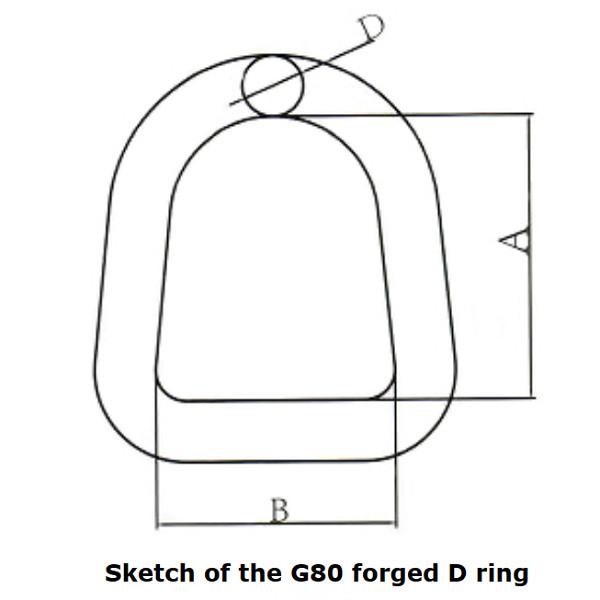

Specification:
| WLL(T) | Weight(kg) | B.L(T) | A(mm) | B(mm) | D(mm) |
| 2.5 | 0.3 | 10 | 55 | 55 | 14 |
| 4 | 0.48 | 16 | 62 | 64 | 17 |
| 6.5 | 0.71 | 26 | 80 | 72 | 19 |
| 8 | 1 | 32 | 90 | 76 |
22 |
