6mm - 19mm Eye And Jaw Jaw Swivel Bearing Swivel Zinc Plated Carbon Steel

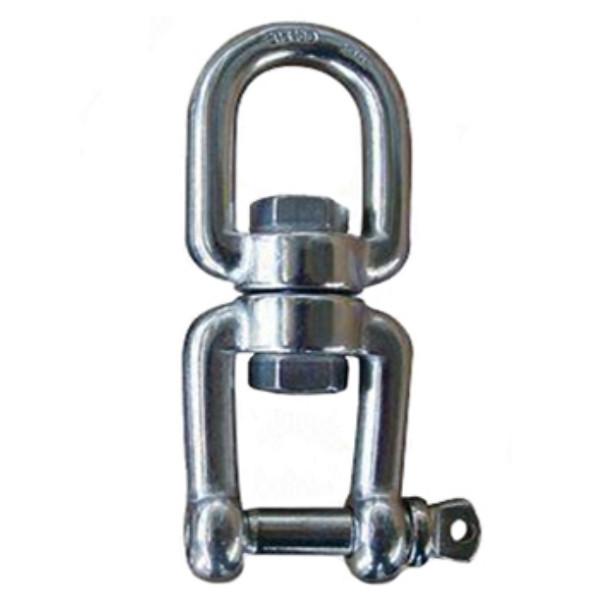

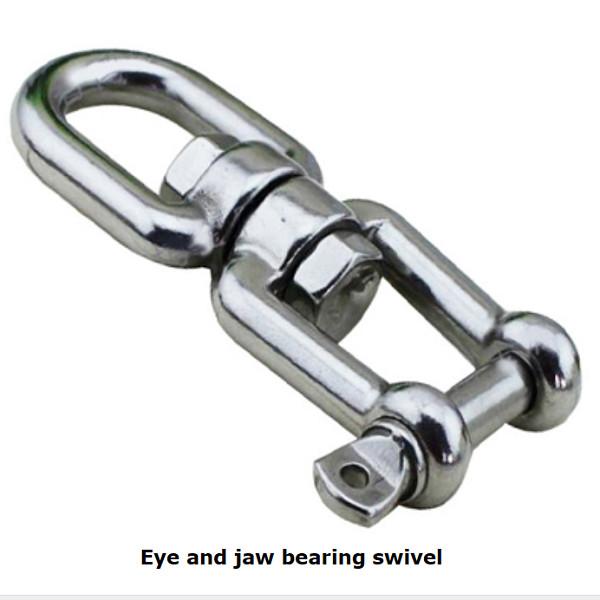

Zinc Plated Carbon Steel Eye And Jaw Type Bearing Swivel
Bearing swivel eye and jaw type is made by high polished stainless steel or carbon steel with hot dip galvanizing on the surface. It has the advantages of small volume, light weight and high strength. Besides, they can serve in many circumstances. And Special specification and marks can be made according to customers requirement.
Product details:
1. Item: Eye and jaw bearing swivel
2. Type: European type
3. Material: stainless steel, carbon steel
4. Technology: drop forged
5. Surface: hot dip galvanized, zinc plated, high polished
6. WLL: 600lbs-7000lbs
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size: 6mm-19mm
10.Special specifications and marks can be made according to customers requirement

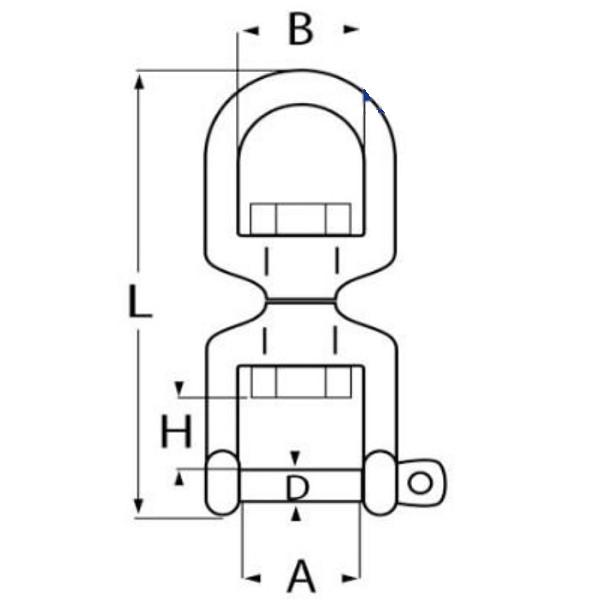

Specification:
| Size | A | B | H | L | W.L.L. |
| mm | mm | mm | mm | mm | lbs |
| 6 | 13 | 13 | 11 | 67 | 600 |
| 8 | 16 | 16 | 16 | 92 | 1100 |
| 10 | 19 | 19 | 22 | 117 | 1540 |
| 13 | 25 | 25 | 28 | 152 | 2640 |
| 16 | 32 | 32 | 35 | 187 | 4750 |
| 19 | 38 | 38 | 41 | 218 | 7000 |
