Stainless Steel Double Eye And Eye Swivel High Polished European Type

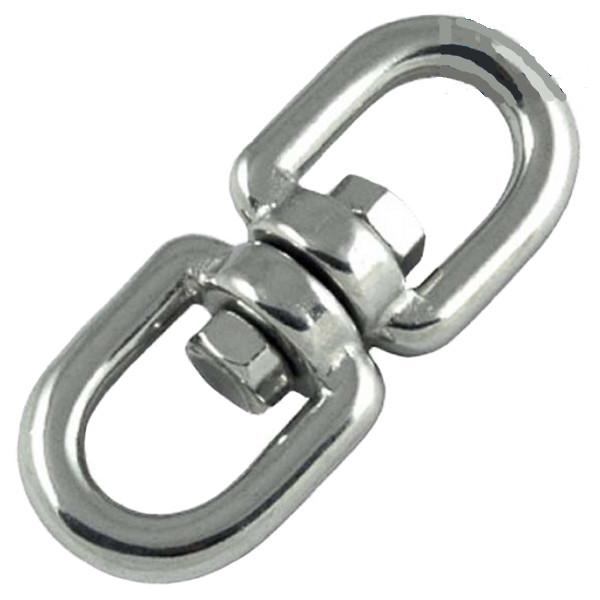

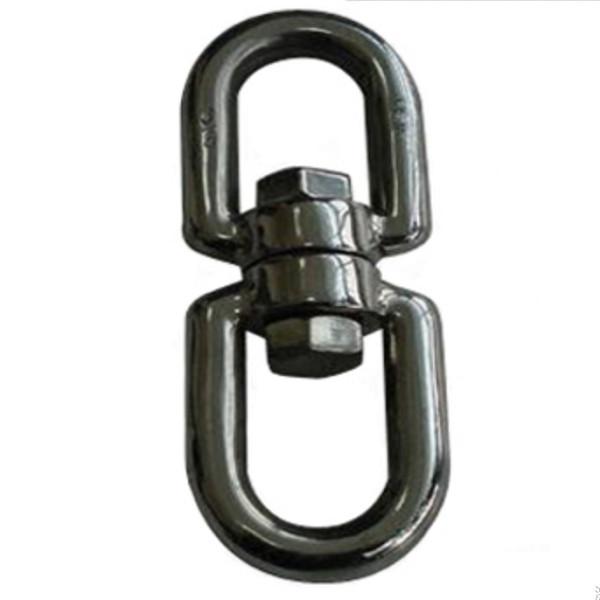

High Polished Stainless Steel European Type Eye and Eye Swivel
European type swivel with eye and eye is made by high polished stainless steel or carbon steel with hot dip galvanizing on the surface. All the procedures from raw material purchase to delivery will be strictly examed. The advanced technical design crafts and equipments are completely adopted. The essential working procedures are controlled completely by the computers.
Product details:
1. Item: European type swivel eye and eye
2. Type: European type
3. Material: stainless steel, carbon steel
4. Technology: drop forged
5. Surface: hot dip galvanized, zinc plated, high polished
6. WLL:113kg-3250kg
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size: 5/32”-1”
10.Special specifications and marks can be made according to customers requirement
Specification:

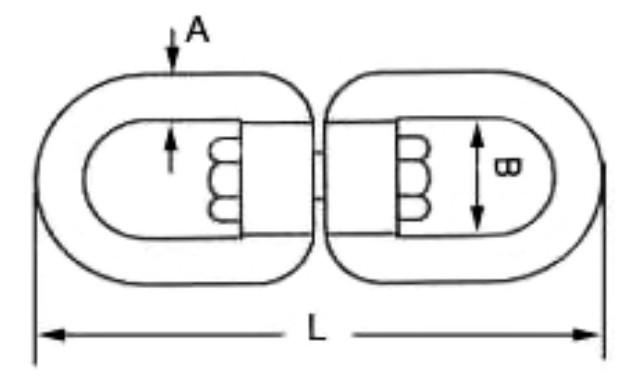

| Item | A(mm) | B(mm) | L(mm) | WLL(kg) |
| HS-01 | 4 | 11 | 50 | 112.5 |
| HS-02 | 5 | 13 | 59 | 162.5 |
| HS-03 | 6 | 14.7 | 66 | 300 |
| HS-04 | 8 | 20.5 | 94 | 475 |
| HS-05 | 9 | 22 | 102 | 750 |
| HS-06 | 10 | 24 | 118 | 875 |
| HS-07 | 13 | 32 | 152 | 1250 |
| HS-08 | 16 | 40 | 188 | 2125 |
| HS-09 | 19 | 41 | 229 | 2500 |
| HS-10 | 22 | 47 | 251 | 2875 |
| HS-11 | 25 | 62 | 291 | 3250 |
