8mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve

Price Negotiable

Price: Negotiable

MOQ: 1 ton

Delivery Time: 60 days

Brand: LKY

Product Description

Electric galvanized Carbon Steel Wire Rope Sleeve

Carbon steel wire rope sleeve is made from specially processed low-carbon alloy steel. It is conforming to ASME B30.9, all sling with swage sockets shall be tested for proof load. And it is suitable for the lifting job where the joint is under wear abrasion and under extrusion.

Product Details:

1. Model: Carbon steel wire rope sleeve

2. Material: Low-carbon alloy steel

3. Shape: Oval shape

4. Usage: Wire rope fitting

5. Size: 8mm-32mm

6. Packaging: Gunny bag or carton then on steel pallet

7. Special specification and marks can be made according to order quantity

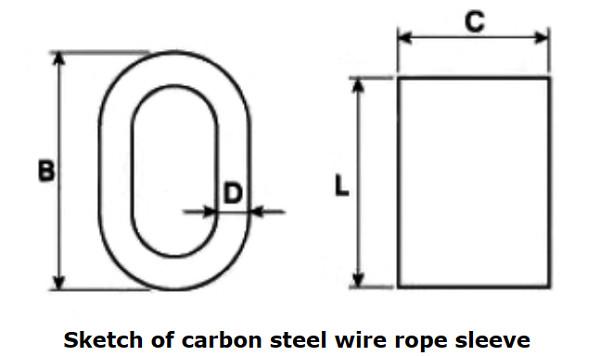

Specification:

Code	Weight	L	B	C	D
Code	lbs/100pcs	mm	mm	mm	mm
SH-08	17	31.75	27.43	20.57	4.83
SH-10	13	31.75	28.45	20.57	3.56
SH-11	331	41.4	35.81	25.91	4.83
SH-13	27	41.4	36.58	25.91	4.06
SH-14	63	57.15	43.69	31.24	5.84
SH-16	54	57.15	46.74	32.51	5.08
SH-19	90	66.8	54.86	38.61	5.84
SH-22	126	73.15	63.5	44.45	6.86
SH-26	187	77.72	72.14	50.8	8.38
SH-32	384	103.12	88.9	63.5	9.65
