China Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type for sale

Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type

Price Negotiable

Price: Negotiable

MOQ: 1 ton

Delivery Time: 60 days

Brand: LKY

Product Description

Aluminiuml Casting US Type Hourglass Aluminium Ferrule

US type hourglass aluminium wire rope ferrule are produced from 1.19mm-15.88mm. Using such aluminium sleeve manufactured through unique processing can improve the quality of pressed wire rope products, even higher than the national standard.

Product Details:

1. Model:US type hourglass aluminium wire rope ferrule

2. Material: Aluminiuml

3. Technology: Casting

4. Shape: 8 shape

5. Usage: Wire rope fitting

6. Specificaion: 1.19mm-15.88mm

7. Packaging: Gunny bag or carton then on steel pallet

8. Special specification and marks can be made according to order quantity

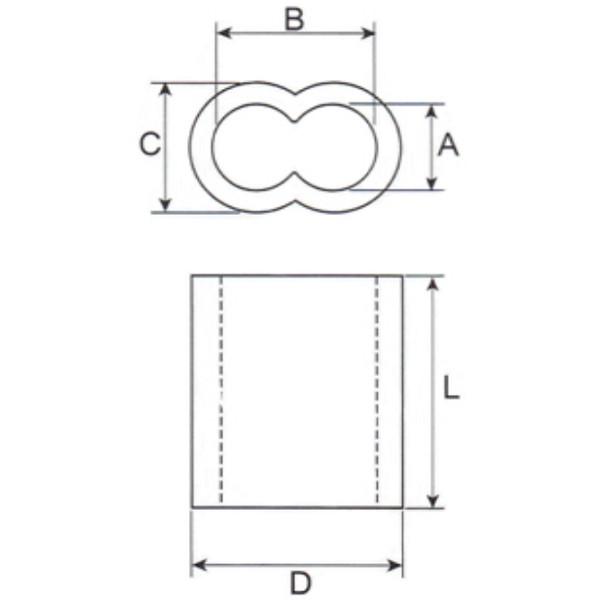

Specification:

Size	Weight	A	B	C	D	L
mm	kgs/1000pcs	mm	mm	mm	mm	mm
1.19	0.276	1.59	3.18	3.6	5.2	9.5
1.58	0.433	1.98	3.97	4.4	6.4	9.5
1.98	0.645	2.38	4.76	5.2	7.9	9.5
2.38	1.45	3.18	6.35	7.1	10.3	12.7
3.18	2.7	3.97	7.94	8.7	12.7	16
3.97	3.67	4.76	9.53	9.53	14.3	17
4.76	7.18	5.56	11.11	11	16.7	25
5.56	10	6.35	12.7	12.7	19	26
6.35	11.76	7.14	14.29	13.5	20.6	28
7.14	13.62	7.94	15.88	14.3	22.2	30
7.94	20.94	9.53	19.05	17.5	26.2	32
9.53	28.18	11.11	22.23	19.1	29.4	36
11.11	52	12.7	25.4	23.8	36.5	42
12.7	80.15	14.29	28.58	27	41.3	50
14.29	99.88	15.88	31.75	28.6	44.5	54
15.88	139.78	17.46	34.93	31.8	49.2	64
