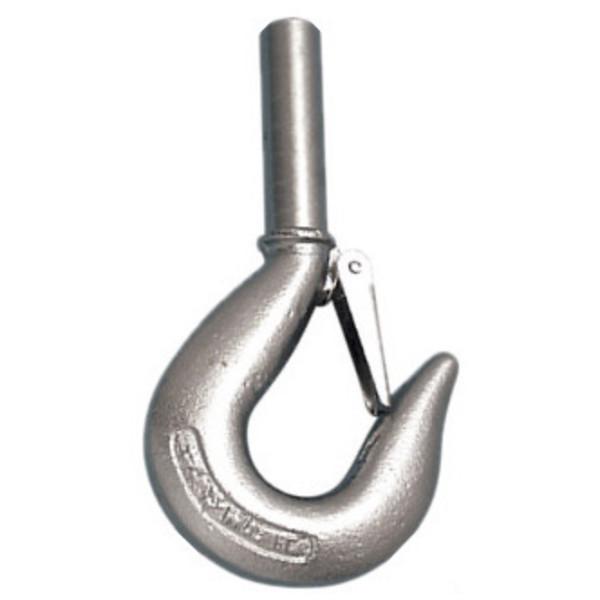

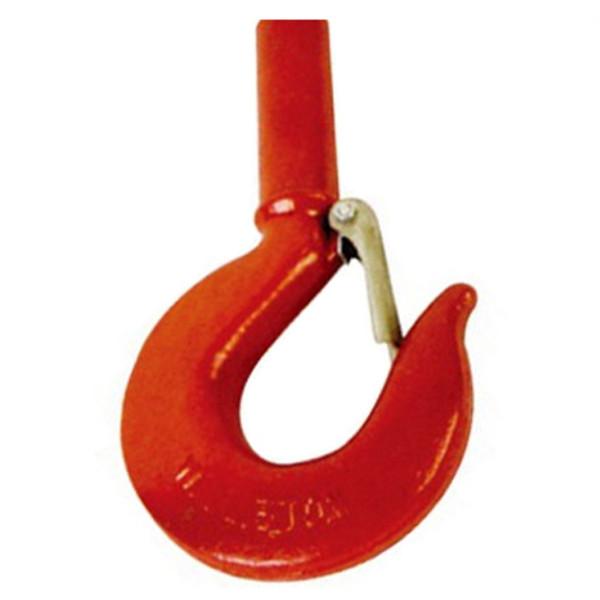

0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch
Zinc Plated G80 US Type Shank Hook With Latch
G80 US type shank hook with latch is a strong forging hook, which is specialized in maritime shipping and port handling. As the increasing cognition by broad new client, the use of hooks is not only confined to the ship. It has been widely applied to chemical industry, oil drilling, coal handing and other projects.
Product details:
1. Item: G80 US Shank Hook with Latch
2. Type: US type
3. Grade: 80
4. Material: alloy steel or carbon steel
5. Technology: drop forged
6. Surface: hot dip galvanized, zinc plated or self color
7. WLL: 0.25T-2T
8. Breaking load: 4 times of working load
9. Usage: lifting, rigging
10. Size: 0.21kg-1.04kg
11. Special specifications and marks can be made according to customers requirement

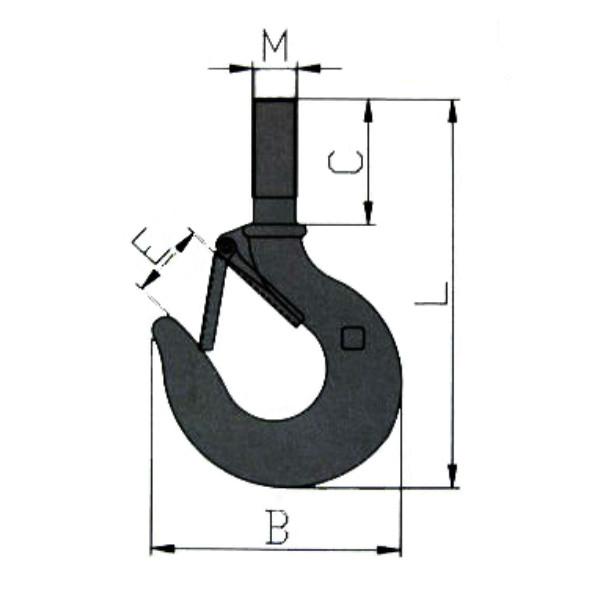

Specification:
| Weight(kg) | WLL(ton) | B(mm) | C(mm) | E(mm) | L(mm) | M(mm) |
| 0.21 | 0.25 | 65 | 29 | 16 | 105 | 12 |
| 0.29 | 0.5 | 69 | 30 | 16 | 109 | 14 |
| 0.57 | 1 | 81 | 33 | 20 | 123 | 16 |
| 1.04 | 2 | 104 | 42 | 24 | 155 | 20 |
