6mm To 32mm Clevis Eye Self Locking Hook Zinc Plated G80

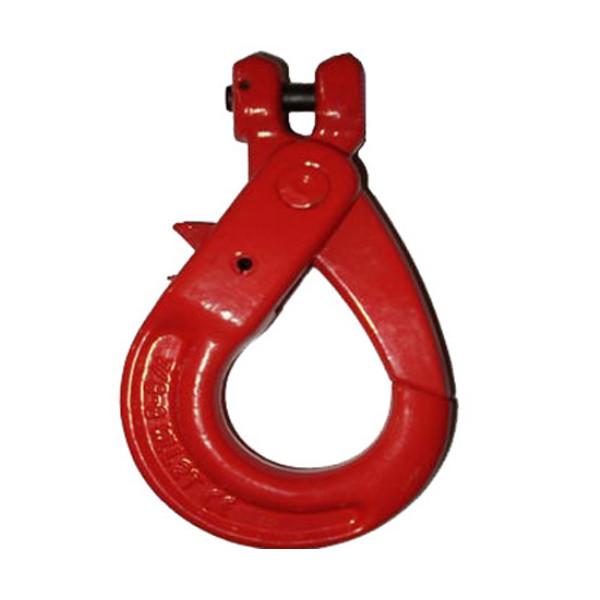

Zinc Plated G80 Clevis Self-locking Hook
Hook is a kind of hoisting rigging fittings. According to the lifting needs, it can be uesd alone or be uesd with other matched riggings. G80 clevis self-locking hooks are made by high strength alloy steel. Because of its solid structure, it can used with omega liks, connection links and other lifting components in many circumstances. And its pulling force is very large, so it could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment.
Product details:
1. Item: G80 Clevis Self-locking Hook
2. Type: European type
3. Grade: 80
4. Material: alloy steel or carbon steel
5. Technology: drop forged
6. Surface: hot dip galvanized, zinc plated or self color
7. WLL: 1.12T-31.5T
8. Breaking load: 4 times of working load
9. Usage: lifting, rigging
10. Size: 6mm-32mm
11. Special specifications and marks can be made according to customers requirement
Specification:

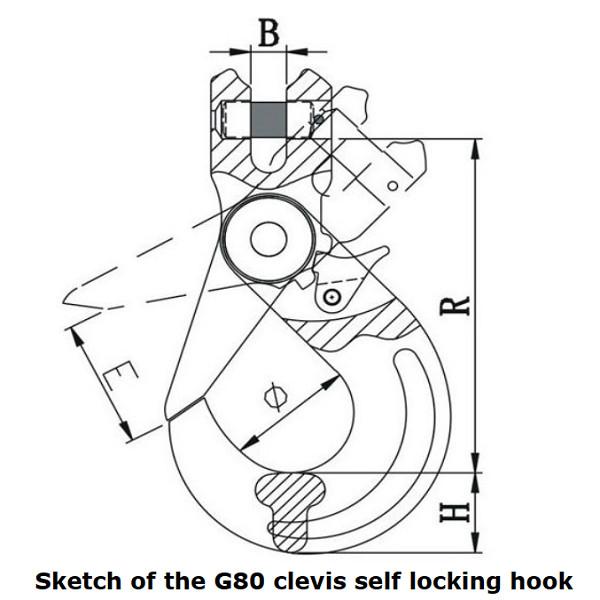

| Chain Size | WLL | Dimention(mm) | Weight | ||||
| mm | ton | B | E | H | R | Φ | kg |
| 6 | 1.12 | 8.5 | 29 | 19.5 | 95.5 | 34 | 0.5 |
| 7-8 | 2 | 9.5 | 34 | 24 | 121 | 46 | 0.8 |
| 10 | 3.15 | 12 | 44 | 28.5 | 146 | 56 | 1.5 |
| 13 | 5.3 | 15 | 52 | 40 | 182 | 69 | 2.8 |
| 16 | 8 | 18 | 60 | 50.5 | 218 | 86 | 5.6 |
| 20 | 12.5 | 25 | 83 | 55 | 240 | 100 | 7.5 |
| 22 | 15 | 25.5 | 88 | 67 | 276.5 | 98 | 11.5 |
| 26 | 21.2 | 30 | 95.5 | 75 | 310.5 | 110 | 18.5 |
| 32 | 31.5 | 36 | 160 | 97 | 411.5 | 166 | 49.1 |
