M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain
Price:
Negotiable
MOQ:
1 ton
Delivery Time:
60 days
Brand:
LKY
Product Description

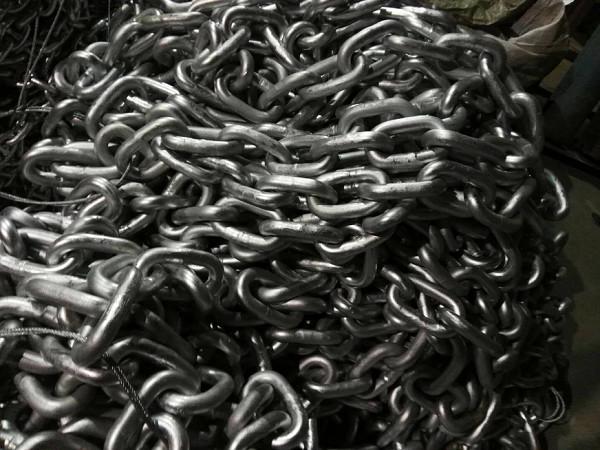

Galvanized Grade L Chain
Grade L chain is a kind of Australian standard chain, can be made of carbon steel or stainless steel. This chain can not be used for lifting purposes.
Surface Treatment: self-color,hot dip galvanized, electro-galvanized, black-painted.

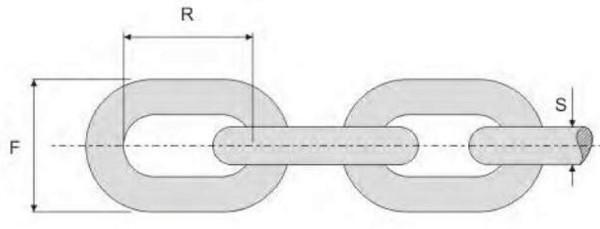

Specifications
|
Chain Size mm |
WLL ton |
S mm |
R mm |
F mm |
Links Per M | Length Per 100Kg | |
| B.F. m | H.D.G m | ||||||
| 5.0 | 0.25 | 5.0 | 14.6 | 17.2 | 68.3 | 174.0 | 167.0 |
| 6.0 | 0.40 | 6.3 | 18.8 | 21.6 | 53.2 | 116.0 | 110.0 |
| 8.0 | 0.64 | 8.0 | 23.8 | 27.0 | 42.0 | 71.4 | 69.9 |
| 10.0 | 1.00 | 10.0 | 29.8 | 34.3 | 33.6 | 44.8 | 43.9 |
| 13.0 | 1.70 | 13.0 | 38.8 | 44.6 | 25.8 | 28.9 | 26.3 |
| 16.0 | 2.58 | 16.0 | 47.8 | 54.8 | 20.9 | 17.8 | 17.5 |
| 20.0 | 4.03 | 20.0 | 59.2 | 68.5 | 16.9 | 11.3 | 11.1 |
| 22.0 | 5.06 | 22.0 | 64.9 | 77.0 | 15.4 | 9.5 | 9.2 |
| 24.0 | 5.61 | 24.0 | 71.0 | 82.2 | 14.1 | 7.8 | 7.6 |
